Canadian Solar Home Package: 1.32kW-101.2kW (440W CS6.2-48TD Panels) All-Black N-Type TOPCon

$609.00

Tax included Shipping calculated at checkout.

Canadian Solar Canadian Solar Home Package: 1.32kW-101.2kW (440W CS6.2-48TD Panels) All-Black N-Type TOPCon

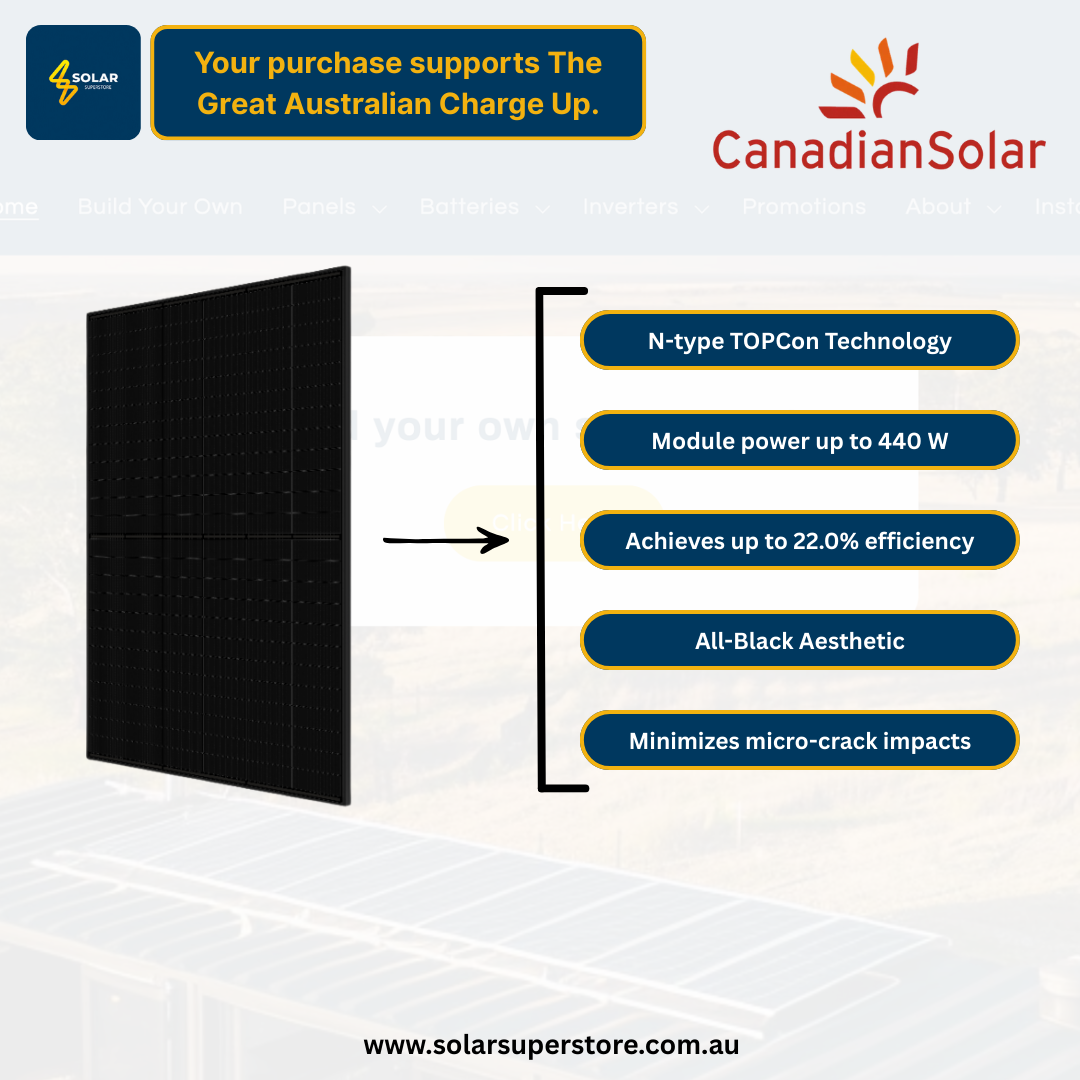

The Canadian Solar TOPHiKu6 (All-Black) is a high-performance N-type TOPCon Solar Panel rated at 440W. Its advanced technology, featuring a low -0.29%/°C temperature coefficient and robust anti-PID performance, ensures superior energy yield even in hot Australian climates. Backed by an industry-leading 30-Year Linear Power Performance Warranty, this solar panel is a supremely reliable component for long-term energy generation.

Key Benefits of the 440W TOPHiKu6

Benefit	What It Means for You
Performance Warranty	Guaranteed power output for three decades, ensuring reliable long-term energy generation and excellent return on investment.
Degradation Rate	Max 1% in the 1st year, then 0.4% annually, maintaining a minimum of 87.4% power at Year 30.
Module Efficiency	High 22%. Generates more power from a smaller roof area, maximizing energy production and minimizing the space needed for your system.
Technology	N-type TOPCon. Excellent anti-LeTID & anti-PID performance means less power loss from heat and high voltage, boosting reliability.
Mechanical Strength	Heavy Load. Certified for heavy snow load up to 6000 Pa and wind load up to 4000 Pa, providing superior durability and structural safety in extreme weather.
Aesthetics	All-black. Sleek, uniform appearance that integrates seamlessly into any residential or commercial rooftop, enhancing your property's value.

Invest in ultimate energy independence with the Canadian Solar TOPHiKu6 440W All-Black solar panel. Designed for those who demand peak performance and a premium aesthetic, this panel delivers maximum energy savings and peace of mind for both residential and commercial rooftops. With a high 22.0% efficiency, this module is engineered to reliably convert sunlight into power for decades.Advanced N-Type TOPCon Technology

The high performance is rooted in the advanced N-type TOPCon cell architecture. This technology significantly reduces power loss mechanisms like Potential Induced Degradation (PID) and Light and Elevated Temperature Induced Degradation (LeTID), ensuring minimal power loss over time. Critically, the ultra-low temperature coefficient of -0.29%/°C means that on the hottest Australian days, your panel loses less power compared to standard P-type modules, translating directly to substantially higher annual energy production.Ideal Application and Durability

The CS6.2-48TD-440 is ideal for any setting where roof space is limited but power needs are high, from suburban homes to large commercial installations. The sleek all-black design ensures a clean and modern look, adding to your property's visual appeal. The panel is built to withstand extreme Australian weather, certified for heavy snow loads up to 6000 Pa and wind loads up to 4000 Pa, addressing all concerns about long-term durability and safety.

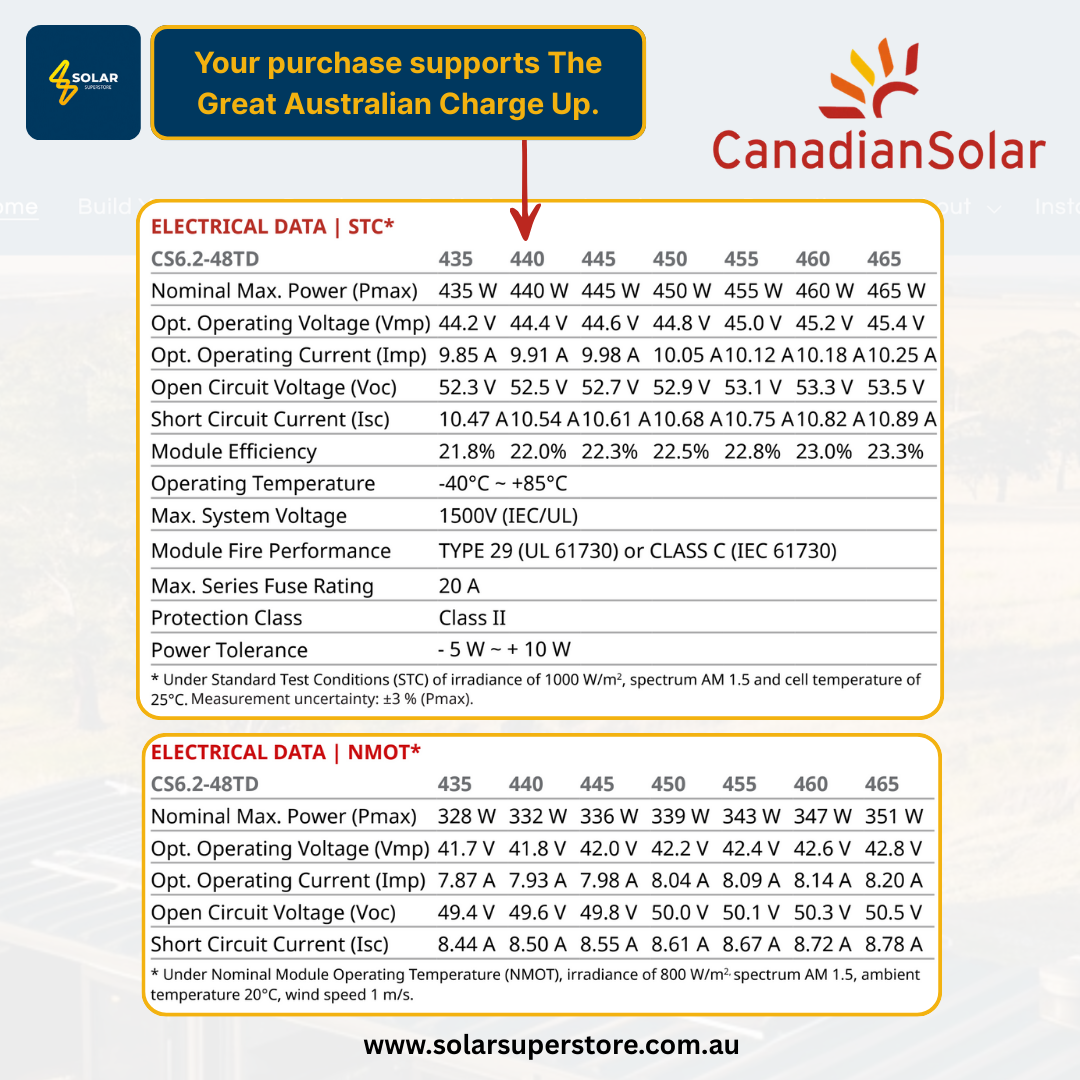

Technical SpecificationsElectrical Characteristics (STC)

Parameter	Value
Maximum Power (Pmax)	440 W
Module Efficiency	22.0 %
Operating Voltage (Vmp)	44.4 V
Operating Current (Imp)	9.91 A
Open Circuit Voltage (Voc)	52.5 V
Short Circuit Current (Isc)	10.54 A
Power Tolerance	-5 W ~ +10 W
Max. System Voltage	1500V (IEC/UL)
Max. Series Fuse Rating	20 A

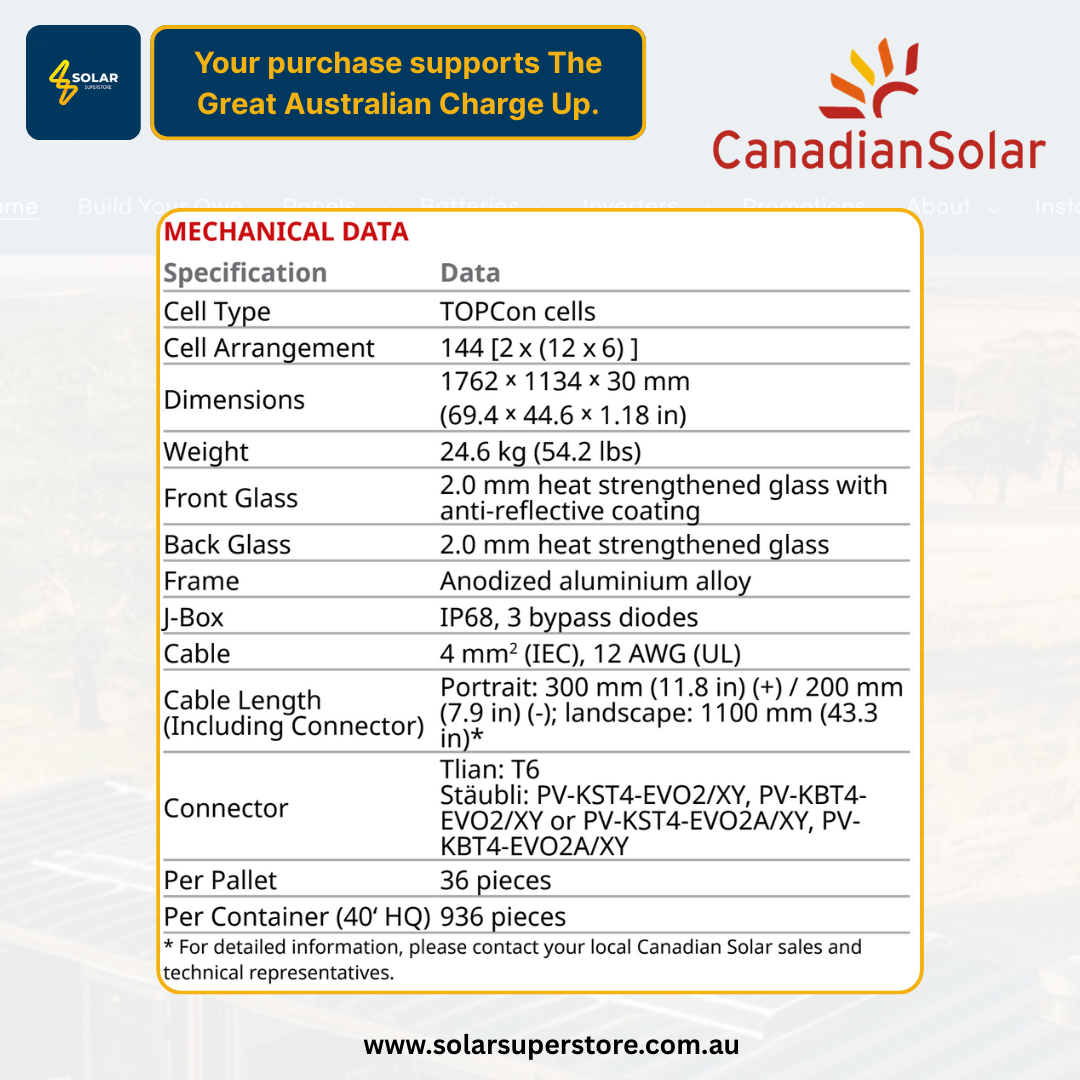

Mechanical Specifications

Parameter	Value
Cell Type	N-type TOPCon cells
Cell Configuration	144 [2x(12x6)]

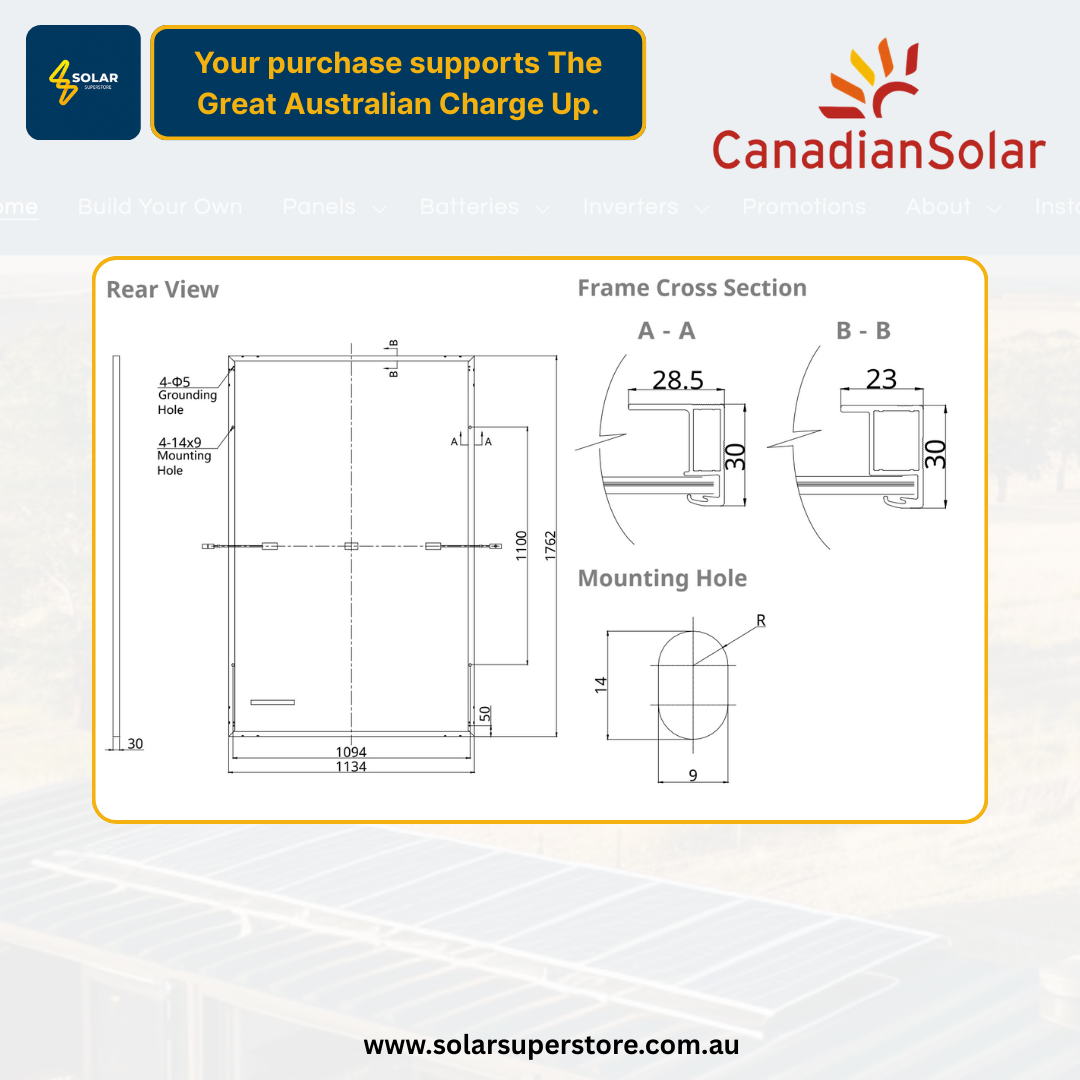

Dimensions (L×W×H)	1762 × 1134 × 30 mm
Weight	24.6 kg
Front Glass	2.0 mm heat strengthened glass w/ anti-reflective coating
Back Glass	2.0 mm heat strengthened glass
Frame Material	Anodized aluminium alloy
J-Box Rating	IP68, 3 bypass diodes
Cable Specifications	4mm² (IEC), 12 AWG (UL)

Temperature Coefficients

Parameter	Value
Power (Pmax) coefficient	-0.29 %/°C
Voltage (Voc) coefficient	-0.25 %/°C
Current (Isc) coefficient	0.045 %/°C
NOCT (Nominal Operating Cell Temperature)	42 ±3 °C

Ratings & Certifications

Parameter	Value
Operating Temperature Range	-40°C ~ +85°C
Wind Load Rating	4000 Pa
Snow Load Rating	6000 Pa
Fire Performance	TYPE 29 (UL 61730) or CLASS C (IEC 61730)
Protection Class	Class II

Compatibility and InstallationSolar Panel Compatibility Table

Compatible With	Notes
String Inverters	Compatible with most modern string inverters (verify DC input voltage/current range).
Microinverters	Ideal for panel-level optimization; check Max Power/Voltage compliance for microinverter model.
Hybrid Inverters	Fully integrates with battery-ready systems due to high efficiency and reliable output.
Battery Systemsd	Seamlessly connects with all major residential battery storage solutions.
Optimizers	Fully compatible with DC optimizers for complex roofs and mitigation of shading issues.

What's Included / Not Included

Included	Not Included (Required)
✓ Solar Panel Unit (440W)	Inverter/Controller (must be purchased separately)

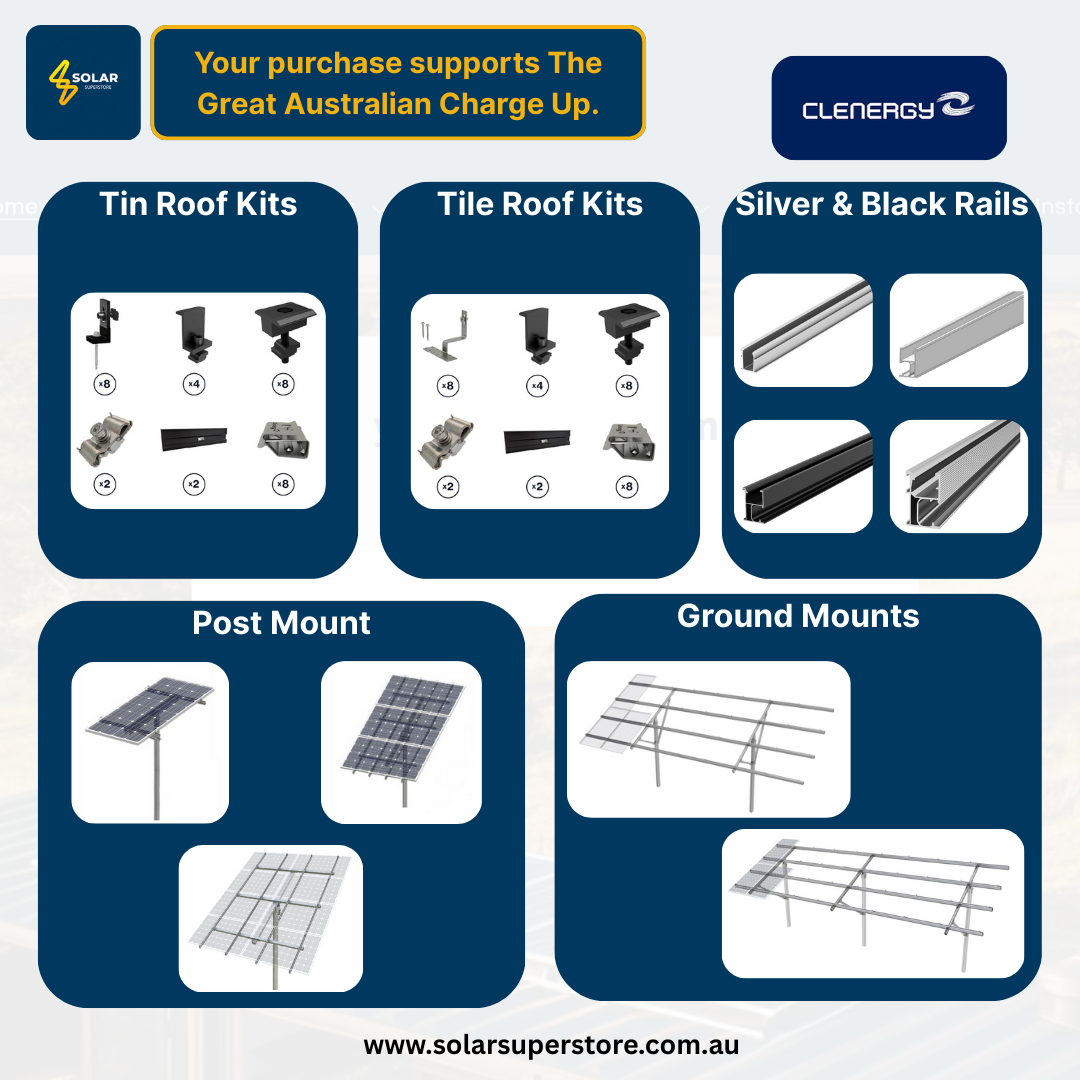

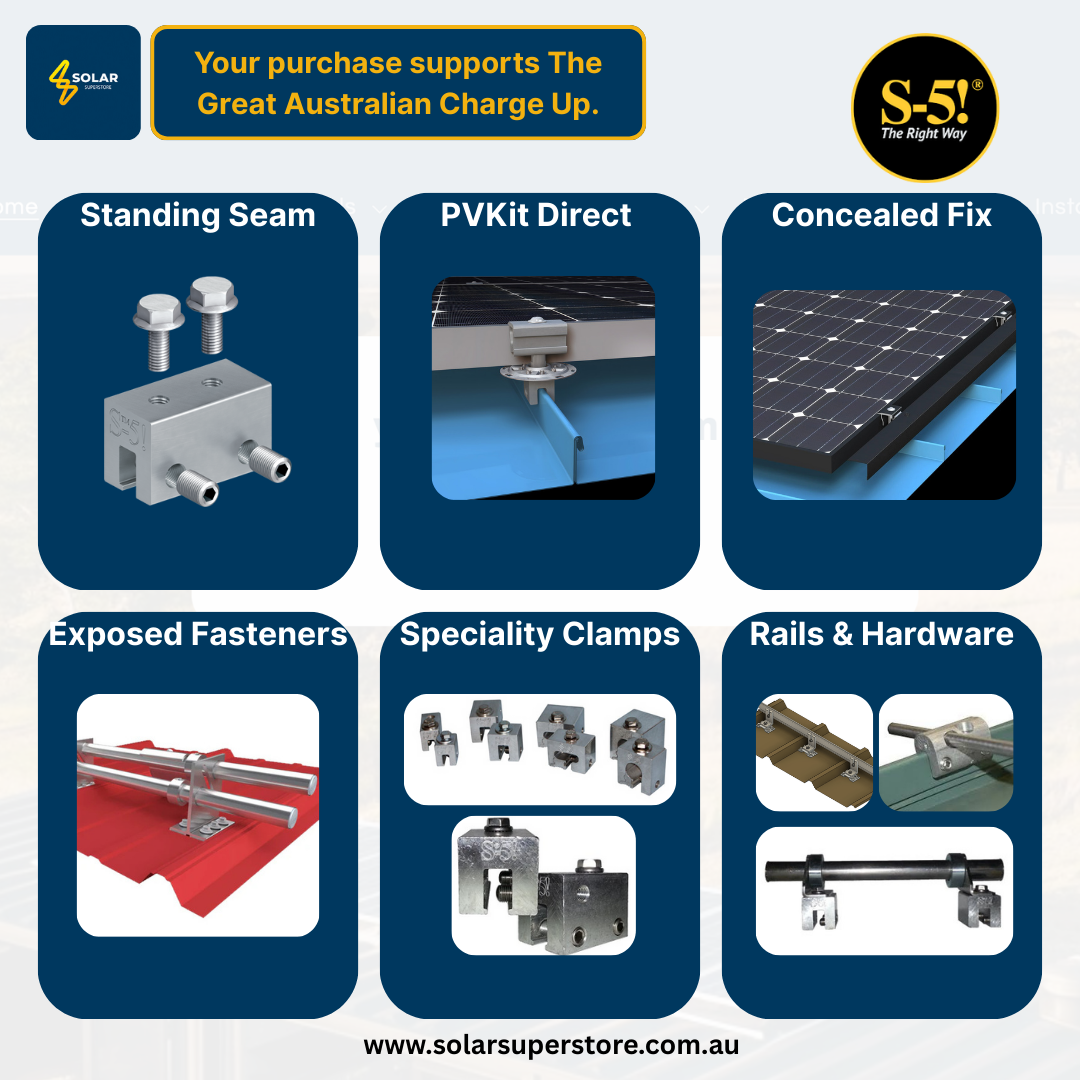

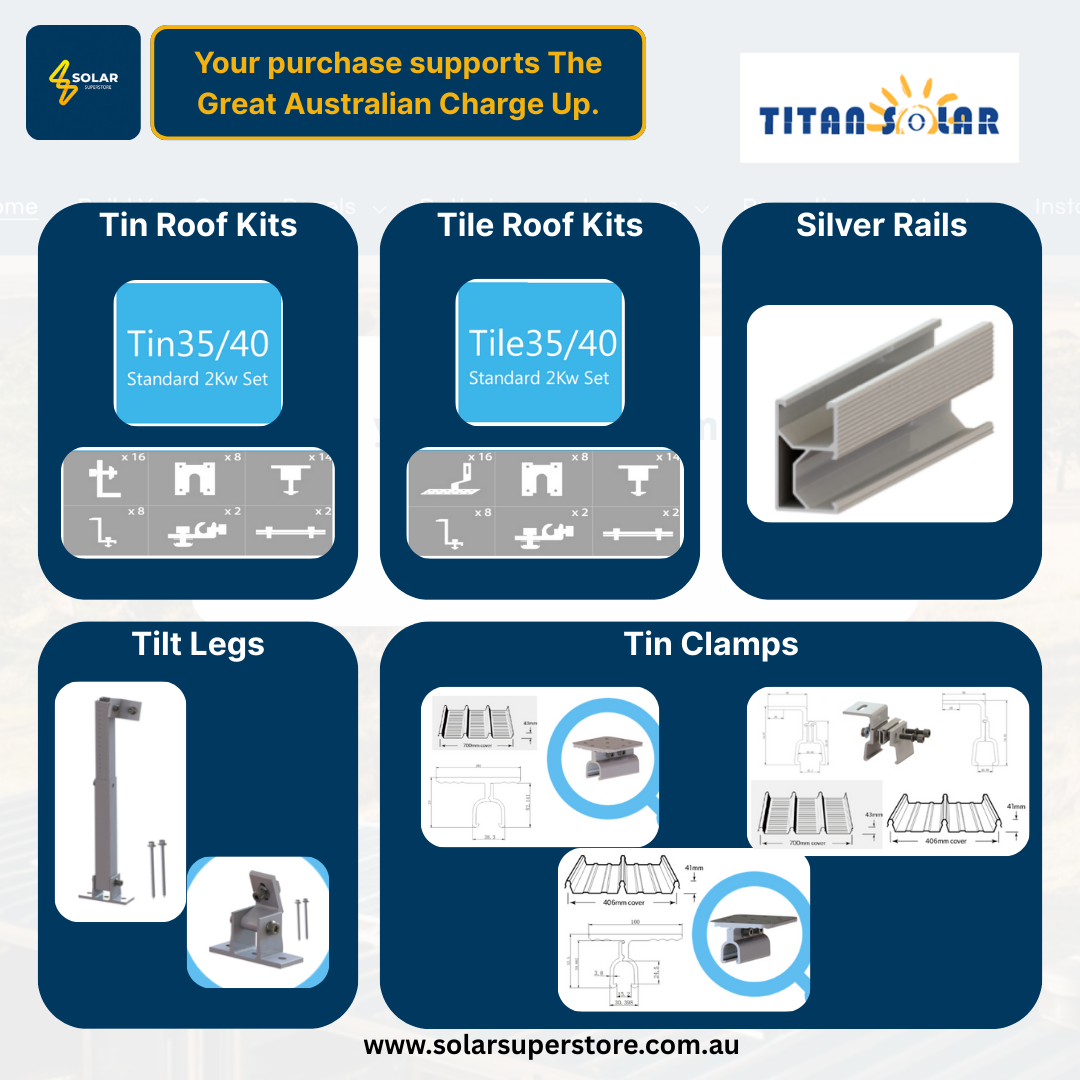

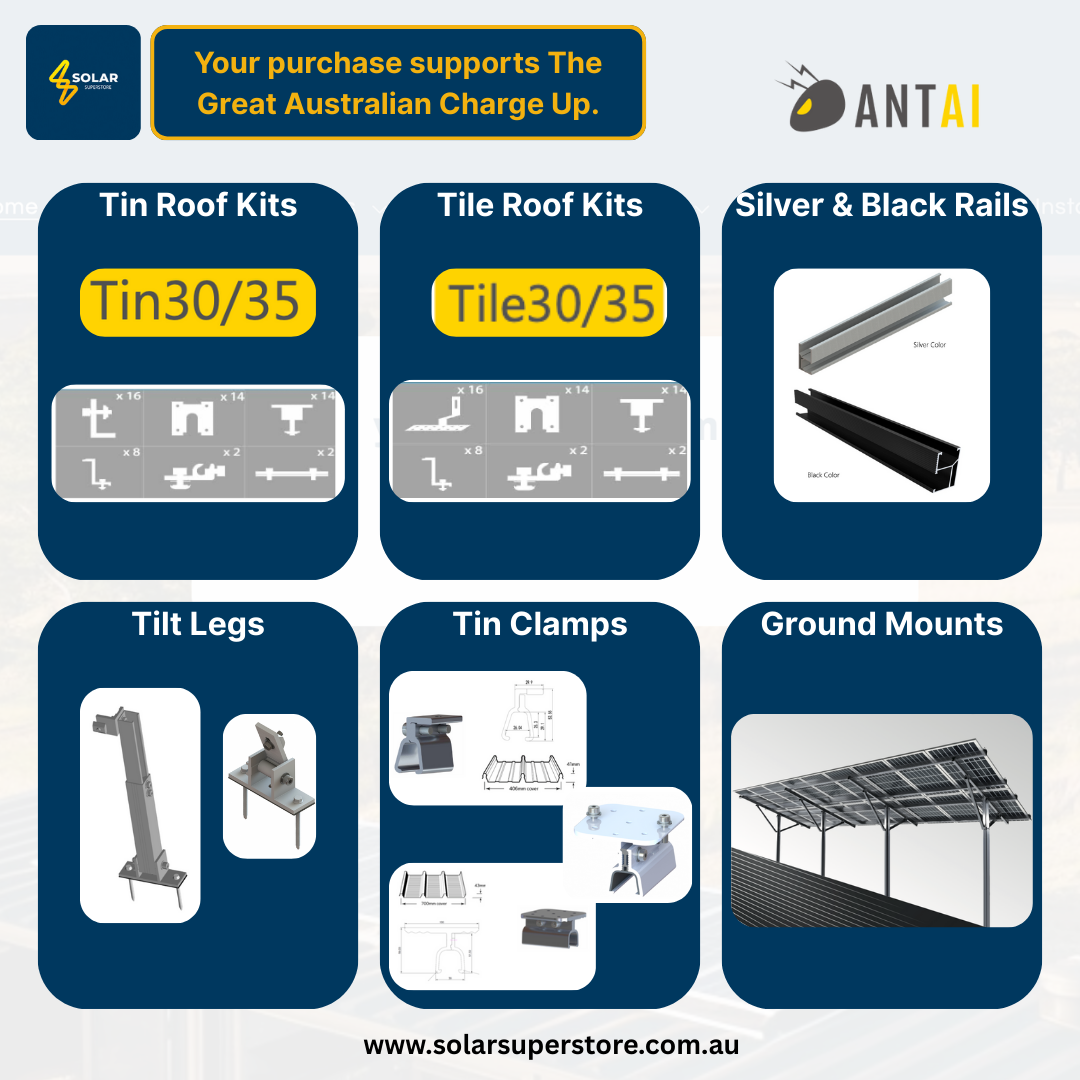

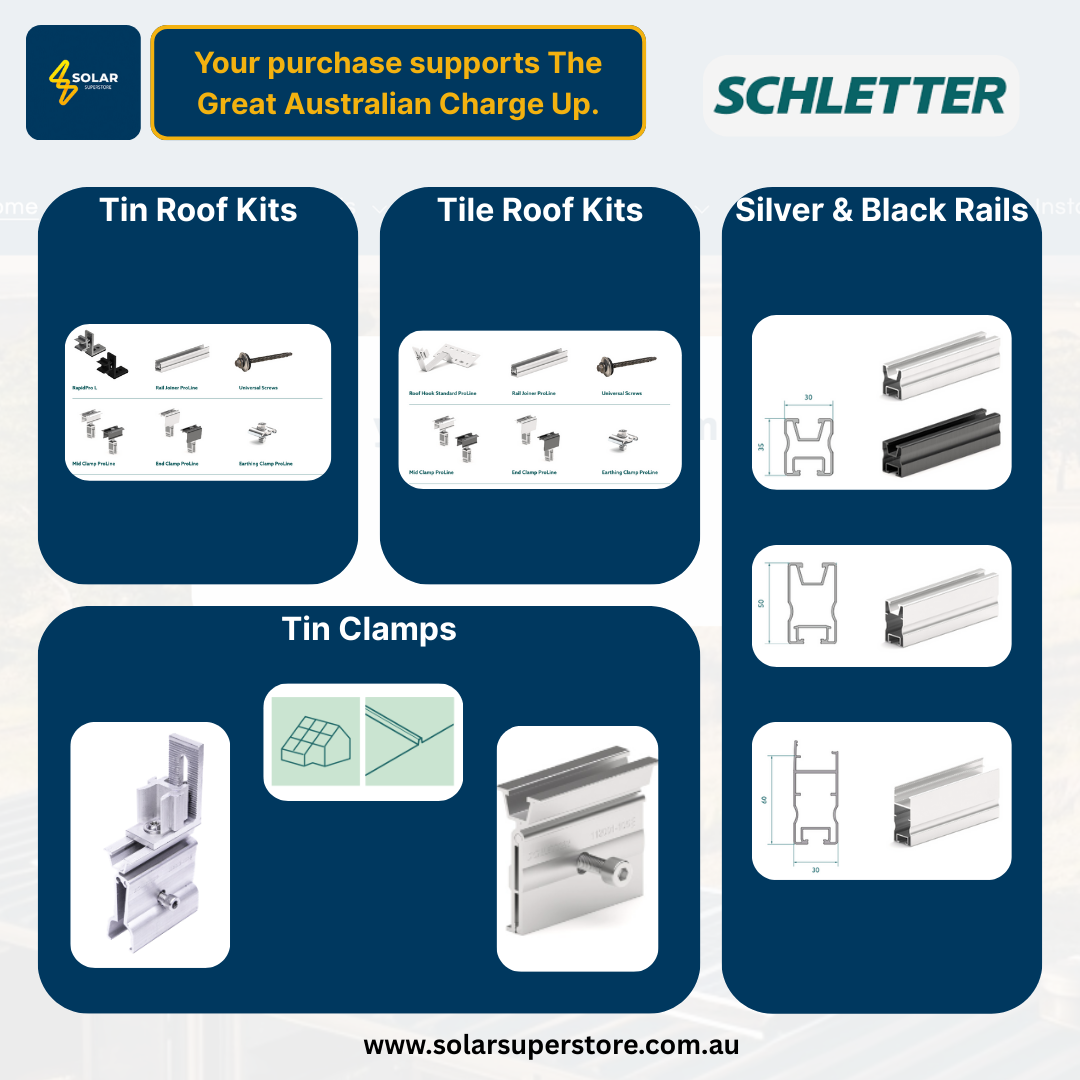

✓ Pre-wired Cables & Connectors (Tlian/Stäubli)	Mounting Hardware (rails, clamps, fixings)
✓ J-Box with 3 bypass diodes	DC/AC Cabling and Isolators
✓ Installation Manual & Warranty Card	Professional Electrician Labor & Grid Approvals

Installation Prerequisites

Requirement	Details
Minimum Clearance	At least 10.2 cm (4.0 in) between the module bottom and the roof/surface for proper cooling and ventilation.
Mounting	Must be securely fastened at a minimum of 4 points on the frame. The mounting structure must be certified to withstand local wind/snow loads.
Roof Condition	Must pass structural evaluation by construction experts for rooftop systems.

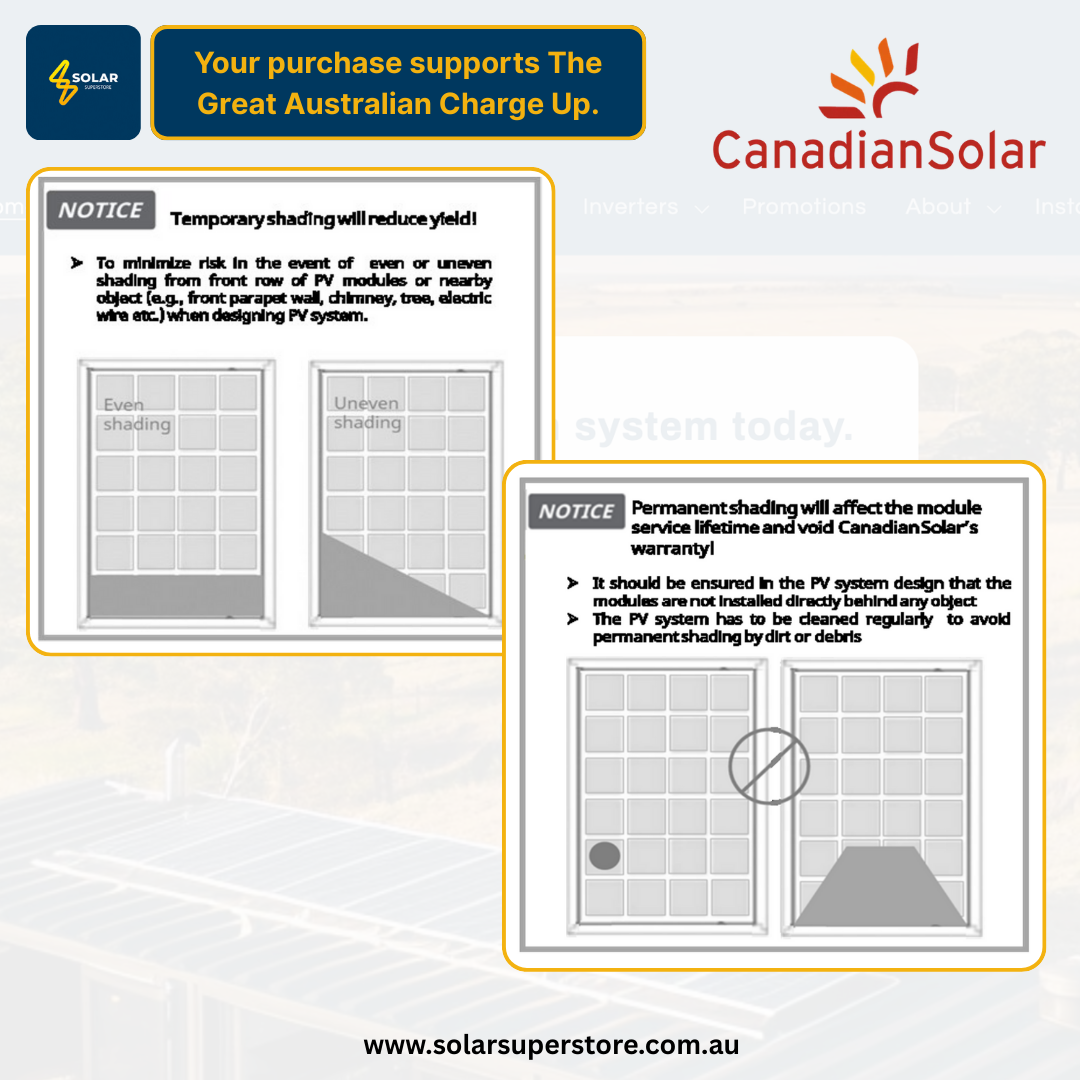

Shading	Modules must not be permanently shaded (partial or full). Permanent shading will reduce yield and void the warranty.
Orientation	Recommended to face North in the Southern Hemisphere for optimal annual energy yield.

Warranty and CertificationsSolar Panel Warranty

Coverage Type	Standard	What's Covered
Product (Defects)	12 Years	Free from defects in materials and workmanship under normal conditions.
Performance	30 Years	Guaranteed power output, calculated based on the linear degradation schedule.
1st Year Degradation	Max 1.0%	Power output is warranted to be no less than 99.0% of the labeled power.
Annual Degradation (Yr 2-30)	Max 0.4%	Subsequent annual power decline.
End Warranty Output (Yr 30)	Min 87.4%	Minimum guaranteed power output after 30 years.

Year	Standard Warranty %
1	99.0%
5	97.4%
10	95.4%
20	91.4%
30	87.4%

Environmental & Safety Ratings

Rating	Standard	Meaning
CEC Approved	Clean Energy Council	The product is eligible for the Australian SRES rebate.
IEC 61215 / IEC 61730	International Standards	Certified for module design qualification and safety.
ISO 9001:2015	Management System	Certified Quality Management System for manufacturing.
Corrosion Resistance	IEC 61701 tested	Passed salt mist corrosion resistance test for coastal applications (refer to manual for installation precautions).
Fire Performance	UL TYPE 29 / IEC CLASS C	Fire resistance certification for the PV module assembly.
