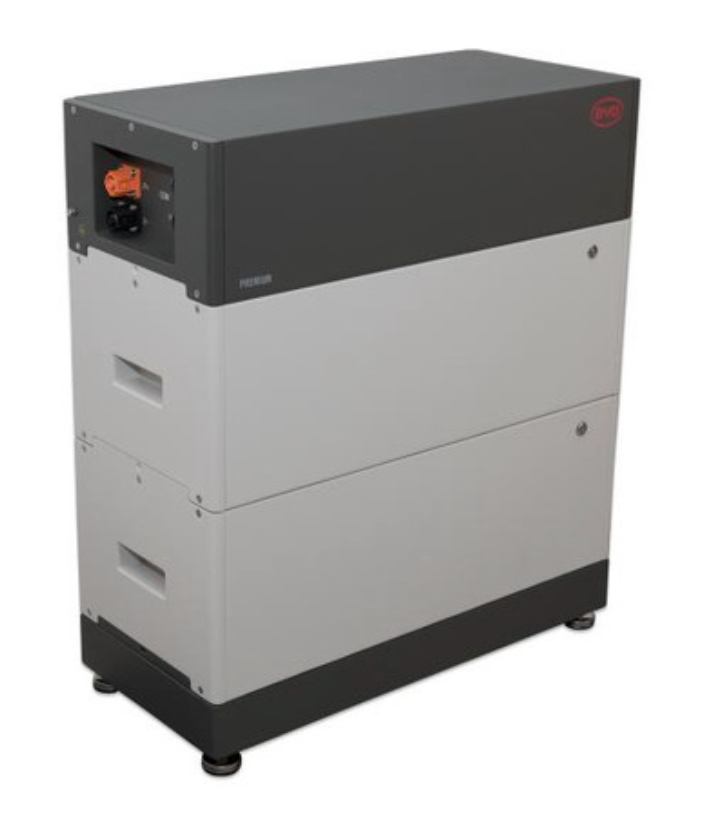

BYD 8.0 kWh Home Storage Battery System (LVS 8.0) with BMU

BUILD YOUR OWN SYSTEM

The BYD Battery-Box Premium LVS 8.0 - 8 kWh is a low-voltage energy storage solution tailored for increased capacity needs in residential and commercial settings. Like its smaller counterpart, this model boasts a modular design with dimensions (711 mm height, 650 mm width, and 298 mm depth), allowing for flexible installations even in space-constrained environments. The LVS 8.0 is built for long-term reliability, with BYD emphasizing strict adherence to recommended charging and discharging protocols to enhance its lifespan. This battery system supports a depth of discharge (DOD) of up to 100%, efficiently utilizing its 8 kWh capacity.

The LVS 8.0 is equipped with advanced safety mechanisms, including over/under voltage protection, overcurrent protection, and temperature monitoring, to deliver stable and secure performance. It supports a nominal discharge and charge current of 130A, providing substantial power delivery capabilities. For example, it can sustain a standard refrigerator (200 watts) for about 40 hours, or power a combination of household appliances such as LED lights, a laptop, and a TV (totaling 300 watts) for about 26 hours. Performance may vary depending on the connected devices and their energy demands.

Data Sheet: BYD LVS 4.0 4kWh Battery

Warranty: BYD LVS 4.0 4kWh Battery

Inverter Compatibility: BYD LVS 8.0 kWh Battery

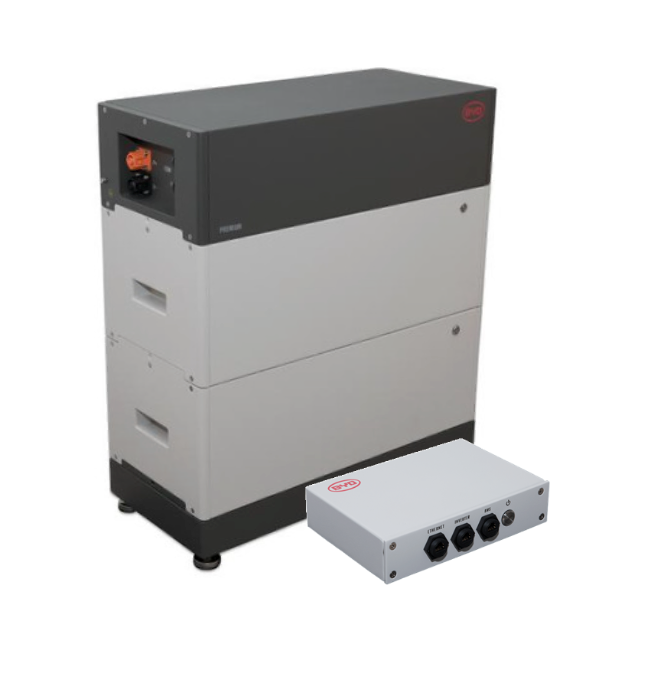

Includes

• 2 x BYD Battery Module (4kWh - LVS Series)

• 1 x BYD Power Distribution Unit & Base (LVS Series)
• 1 x BYD Battery Management Unit (LVS Series)

Weight

109kg (This is a heavy and bulky item, ensure there is suitable site access per our shipping policy)

Height

771mm

Note

Installation not included in price. For an installation quote, email info@solarsuperstore.com.au.

BYD Warranty

The BYD Battery Limited Warranty covers the Battery-Box Premium LVS series, including LVS 4.0, LVS 8.0, LVS 12.0, LVS 16.0, LVS 20.0, and LVS 24.0 low-voltage lithium iron phosphate batteries for 10 years, ensuring at least 60% of nominal energy retention under specified operating conditions. The warranty includes options for replacement, repair, or compensation for defects in materials and workmanship, provided the batteries are used and installed according to BYD's guidelines. Exclusions apply for improper installation, use with incompatible inverters, unauthorized modifications, and damages caused by natural disasters. This warranty is applicable globally, offering additional protections as specified in local consumer law regulations.

How to select and identify a suitable location to install your battery.

For additional information on Battery Energy Storage Systems, visit: Electrical Regulatory Authorities Council

View their installation requirements here.
