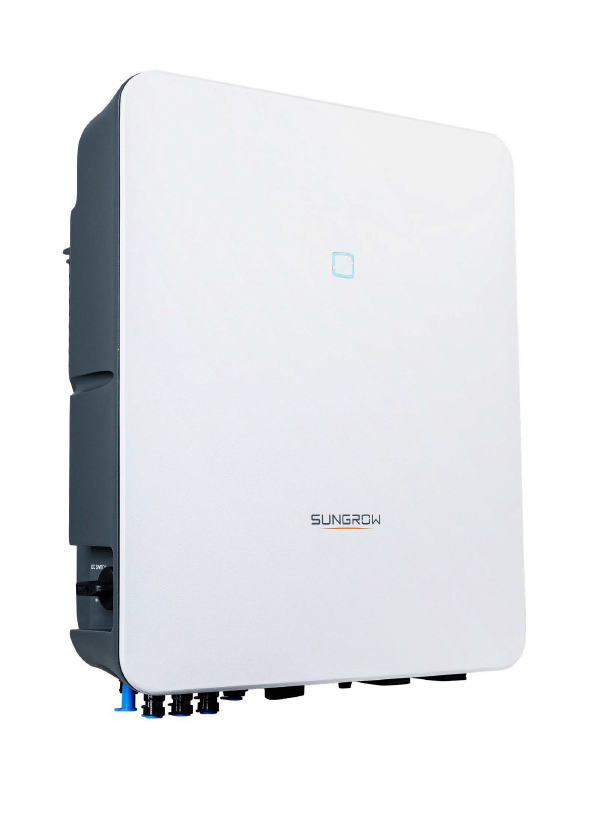

Sungrow 10.0kW - 3 Phase Hybrid Inverter (SH10RT)

Datasheet: SH10RT

Warranty: SH10RT

Includes

• 1 x SH10RT Inverter

Type of Inverter and Performance

The SH10RT is a powerful residential hybrid three-phase inverter designed for efficient management and distribution of solar energy in homes with substantial power requirements. It stands out due to its robust three-phase output, which delivers a balanced power supply that's ideal for larger homes or those with higher energy demands. This inverter supports a versatile battery voltage range from 150-600V, accommodating various types of battery storage systems to enhance the flexibility and efficacy of home energy solutions.

With a peak efficiency of 98.4% and a European efficiency of 97.9%, the SH10RT is highly efficient in converting solar energy into usable electricity. This optimizes both the operational efficiency and economic impact of the installation. Additionally, the inverter is engineered to handle unbalanced loads effectively in backup mode, ensuring a reliable power supply even during instances of grid instability.

Maximum Power Point Tracking (MPPT) Efficiency

The SH10RT is equipped with advanced dual MPPT technology, which maximises the solar energy conversion by managing multiple solar arrays independently. This capability is crucial for installations where solar panels are exposed to different shading conditions or are oriented in different directions. Each MPPT operates independently to ensure optimal energy production from each array without interference. The inverter's wide MPPT voltage range from 200V to 950V allows for efficient operation under various environmental conditions, maximising the energy yield and enhancing system flexibility.

Safety and Reliability

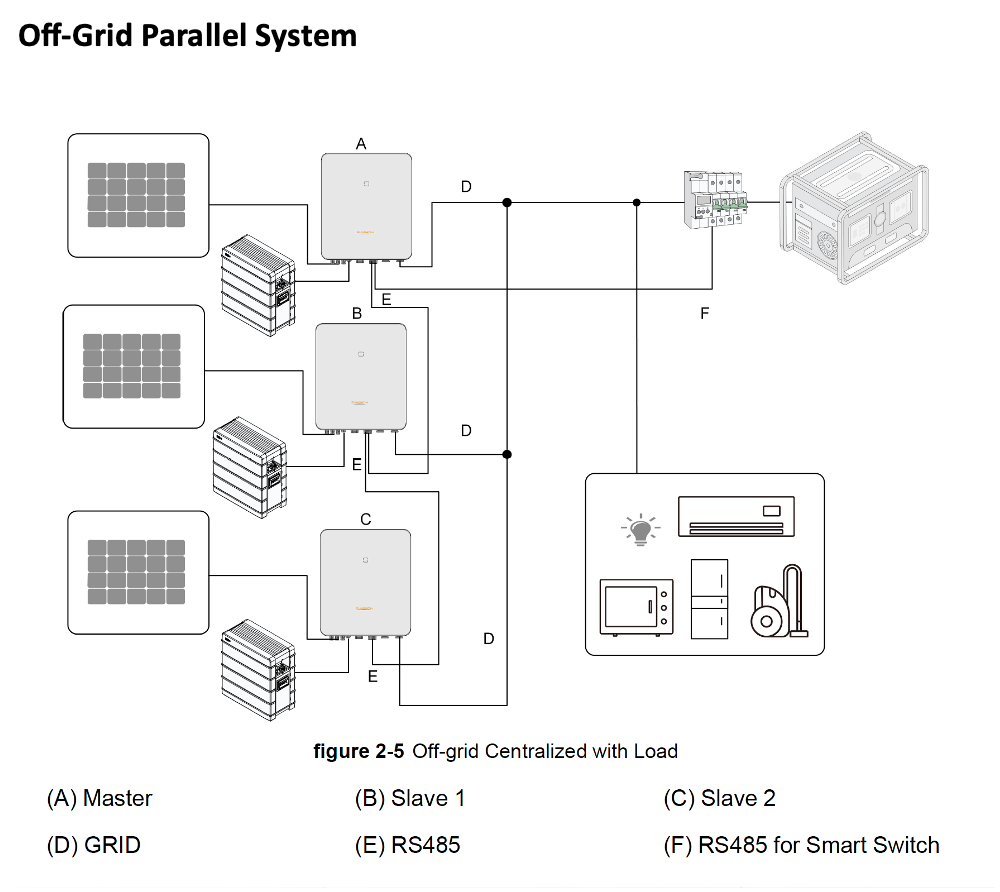

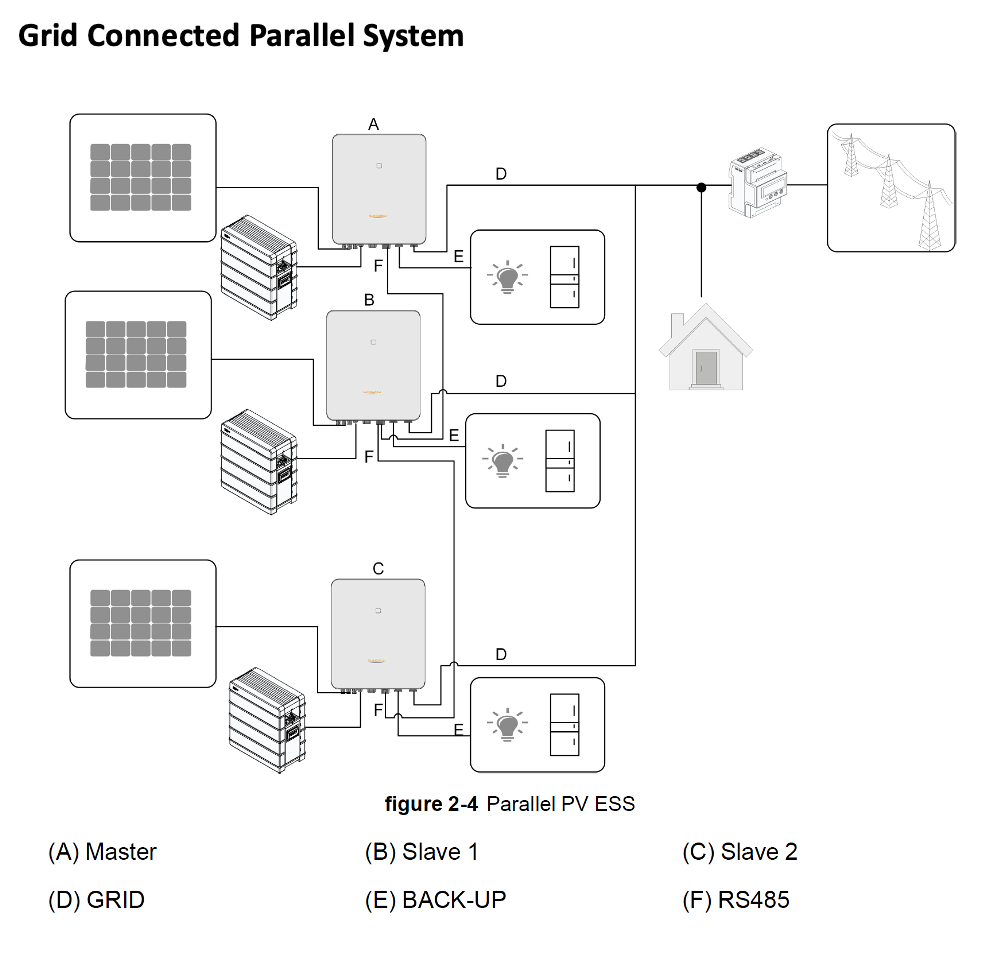

Safety and reliability are core to the design of the SH10RT, which includes several protective features such as over voltage and under voltage protection, leakage and short circuit protection, and anti-islanding functionality for safe disconnection from the grid during outages. It also features Type II surge protection on both the DC and AC inputs to protect against voltage spikes. Additionally, the inverter supports parallel operation with up to five units in master-slave mode, increasing redundancy and enhancing the reliability of larger or more complex solar power systems.

User-Friendly Operation and Monitoring

Operation and monitoring of the SH10RT are streamlined through its integration with advanced smart management systems. The inverter offers touch-free commissioning through a smartphone app and provides free online monitoring to allow homeowners to track energy production and system performance in real time. The interface is designed for ease of use, making all operational data readily accessible and simplifying the management of energy usage.

Battery Compatibility

The SH10RT is compatible with lithium-ion batteries and supports a wide battery voltage range, facilitating the integration of various energy storage solutions. This versatility enables homeowners to tailor their energy storage strategies to maximise efficiency and capitalise on solar power during peak demand periods or in the event of grid outages.

Warranty and Support

Sungrow backs the SH10RT with a comprehensive warranty that covers defects in materials and workmanship, ensuring a reliable investment for homeowners. This warranty, along with Sungrow’s dedicated customer support, guarantees quick resolution of any issues, providing users with minimal disruption and maximising the benefits from their solar energy systems.
