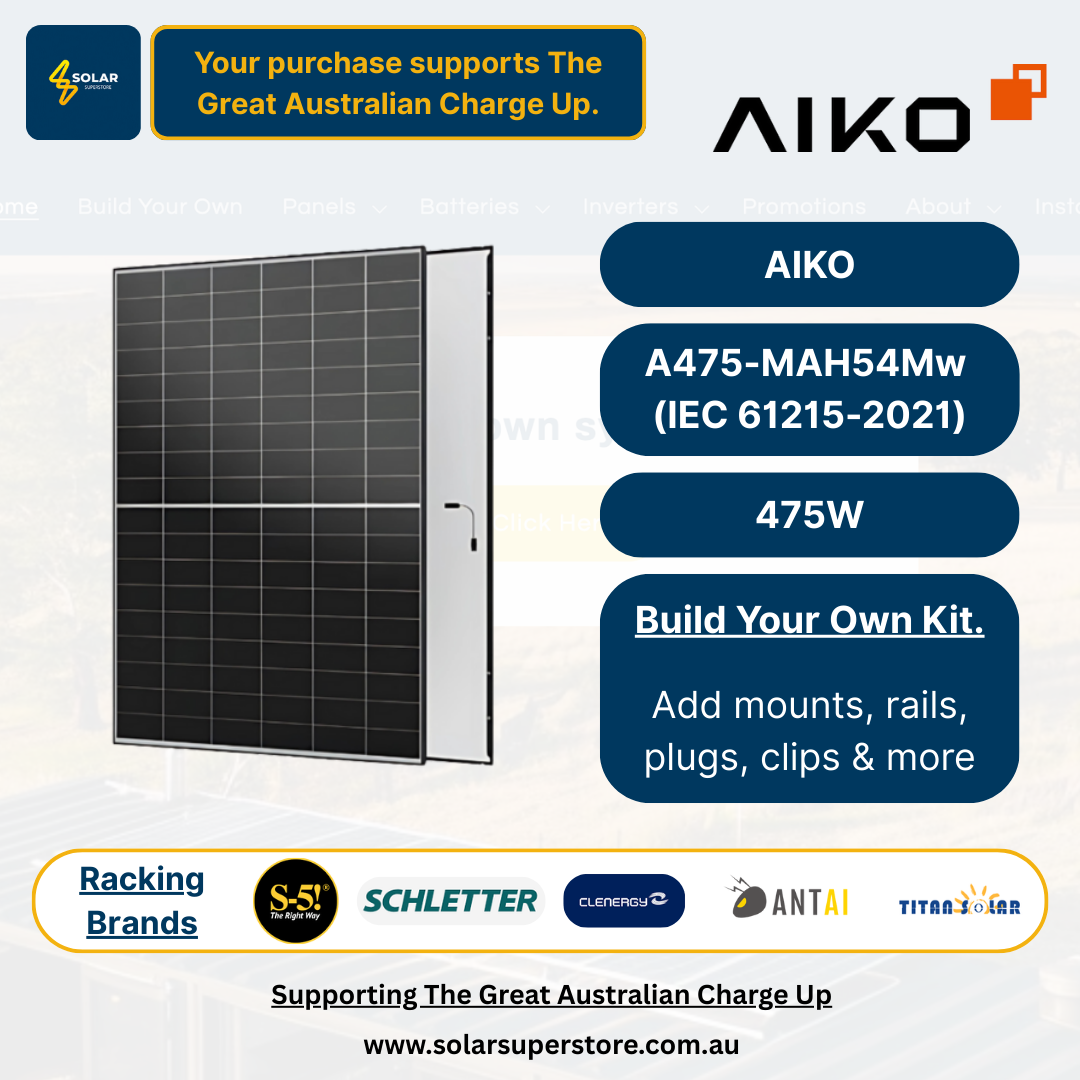

AIKO Solar Home Package: 475W [A475-MAH54Mw] Panels (Black Frame N-Type)

$660.00

Tax included Shipping calculated at checkout.

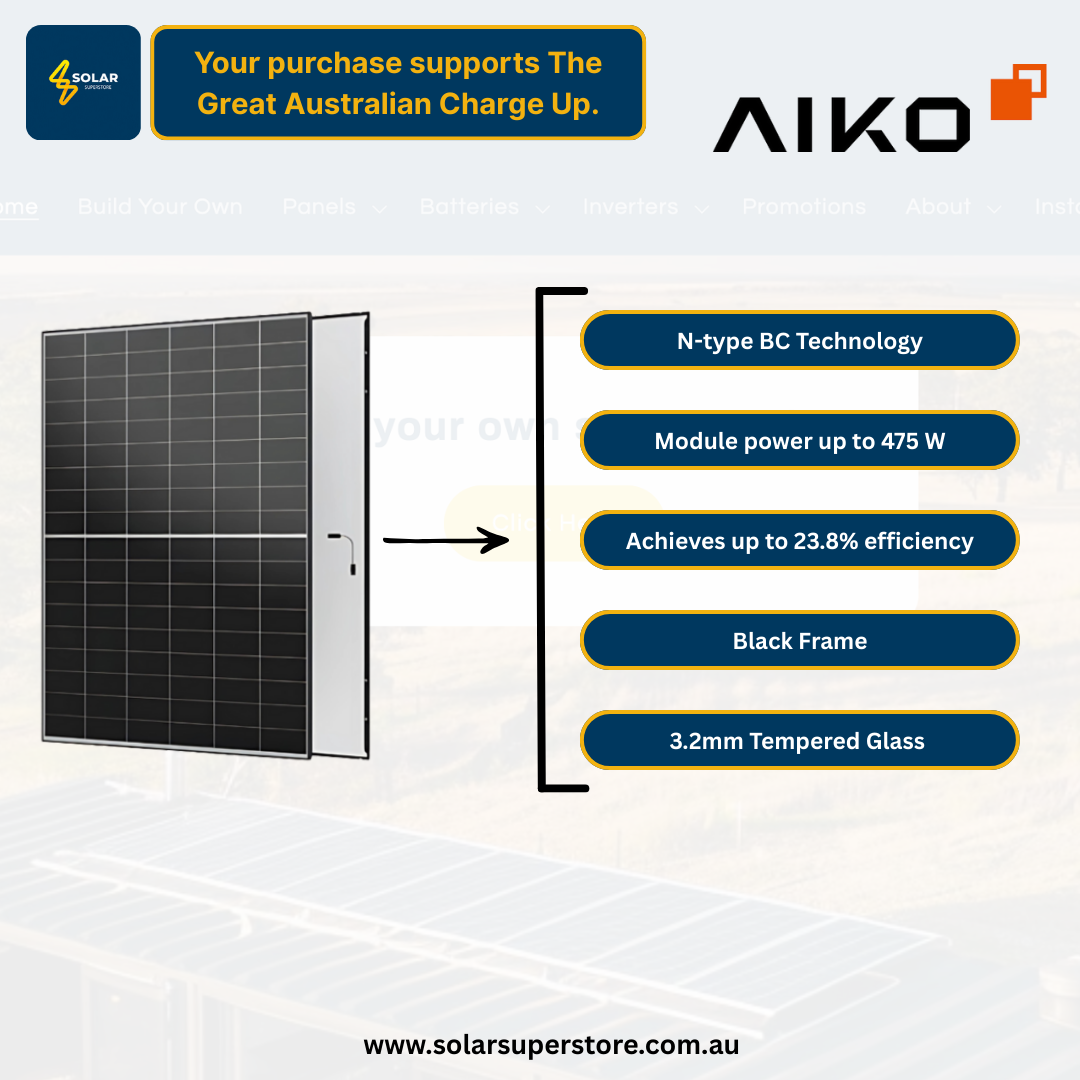

The AIKO NEOSTAR 2P Mono-Glass Module is a high-power solar panel rated at 475 W. Featuring N-Type BC cell technology for a leading 23.8% efficiency and an ultra-low Pmax temperature coefficient of -0.26%/°C it ensures superior energy yield and performance especially in hot conditions. Backed by an industry-leading 30-Year Linear Power Warranty this module is a highly reliable investment designed for maximum long-term energy generation and peace of mind.

Key Benefits of the 475W NEOSTAR

Benefit	What It Means for You
Performance Warranty	Guarantees a minimum power output of 88.85% after three decades securing your investment and ensuring reliable long-term savings.
Degradation Rate	Maximum 1% loss in the first year followed by only 0.35% annual degradation meaning your system produces more power for longer.
Module Efficiency	Ultra-High 23.8%. Maximizes energy harvesting from your available roof space leading to a smaller system size and higher power output.
Technology	N-type BC. Its better temperature coefficient and high temperature restriction minimize power loss ensuring a more reliable 30-year performance.
Mechanical Strength	Certified to withstand high static loads up to 5400 Pa (Front) and 2400 Pa (Back) ensuring superior durability against heavy snow and wind.
Temperature Performance	A Pmax temperature coefficient of -0.26%/°C means less power loss on hot days significantly boosting annual energy production in high-temperature environments.

Invest in the power and confidence of AIKO's flagship NEOSTAR 2P series. This 475W module is engineered for maximum energy independence and provides significant long-term savings for both residential and commercial projects. It delivers not just high power but the peace of mind that comes with a robust 25-year product and 30-year linear performance warranty.Advanced N-Type BC Technology

The panel utilizes cutting-edge N-Type Back Contact (BC) cell technology. This architecture eliminates shading losses from front-side metal fingers allowing the panel to convert more sunlight into electricity. Key technical advantages include an incredibly low temperature coefficient of -0.26%/°C which minimizes the performance drop typically experienced by other modules under the harsh Australian sun.Application Context and Durability

The AIKO 475W is ideal for installations where roof space is at a premium as its 23.8% efficiency maximizes power generation per square meter. Built with a black anodized aluminum frame and 3.2mm tempered glass the module is highly durable. It is also suitable for installation in coastal environments up to 50m away from the seashore with anti-corrosion treatment of the frame and related components recommended for distances between 50m and 500m.

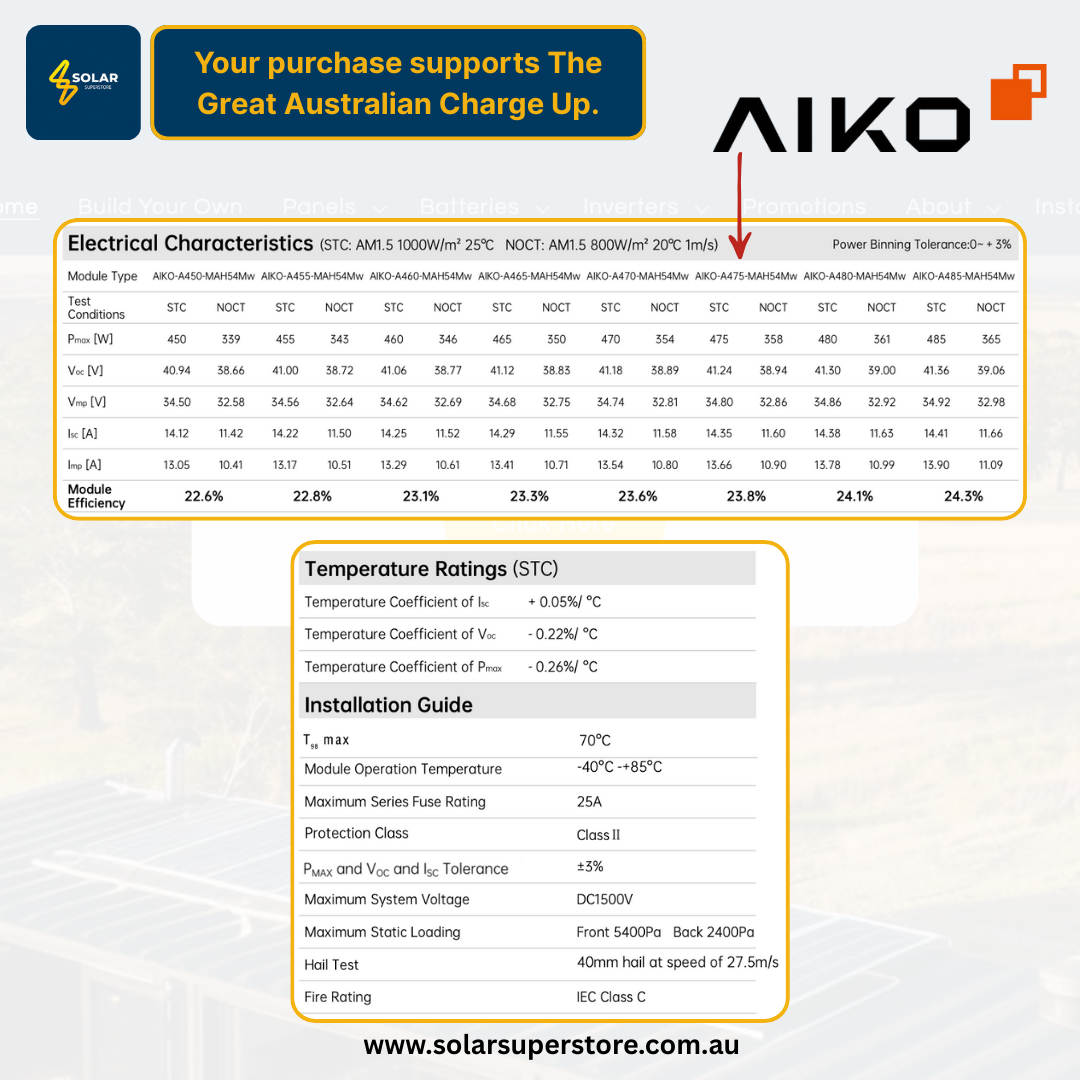

Technical Specifications Electrical Characteristics (STC)

Maximum Power (Pmax)	475 W
Module Efficiency	23.8 %
Operating Voltage (Vmp)	34.80 V
Operating Current (Imp)	13.66 A
Open Circuit Voltage (Voc)	41.24 V
Short Circuit Current (Isc)	14.35 A
Power Tolerance	0 ~ +3 %
Max. System Voltage	DC 1500V
Max. Series Fuse Rating	25 A

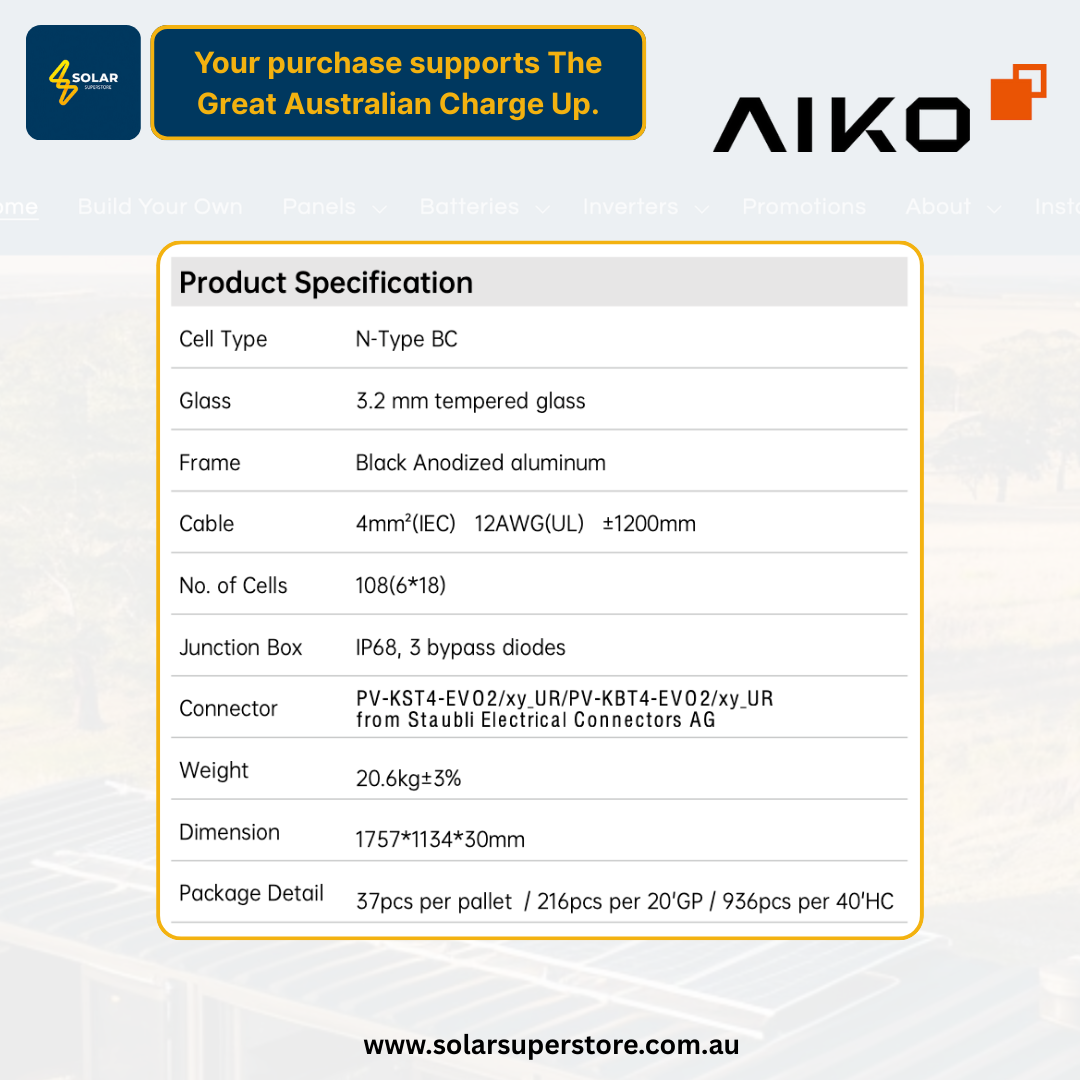

Mechanical Specifications

Parameter	Value
Cell Type	N-Type BC
Cell Configuration	108 (6×18)

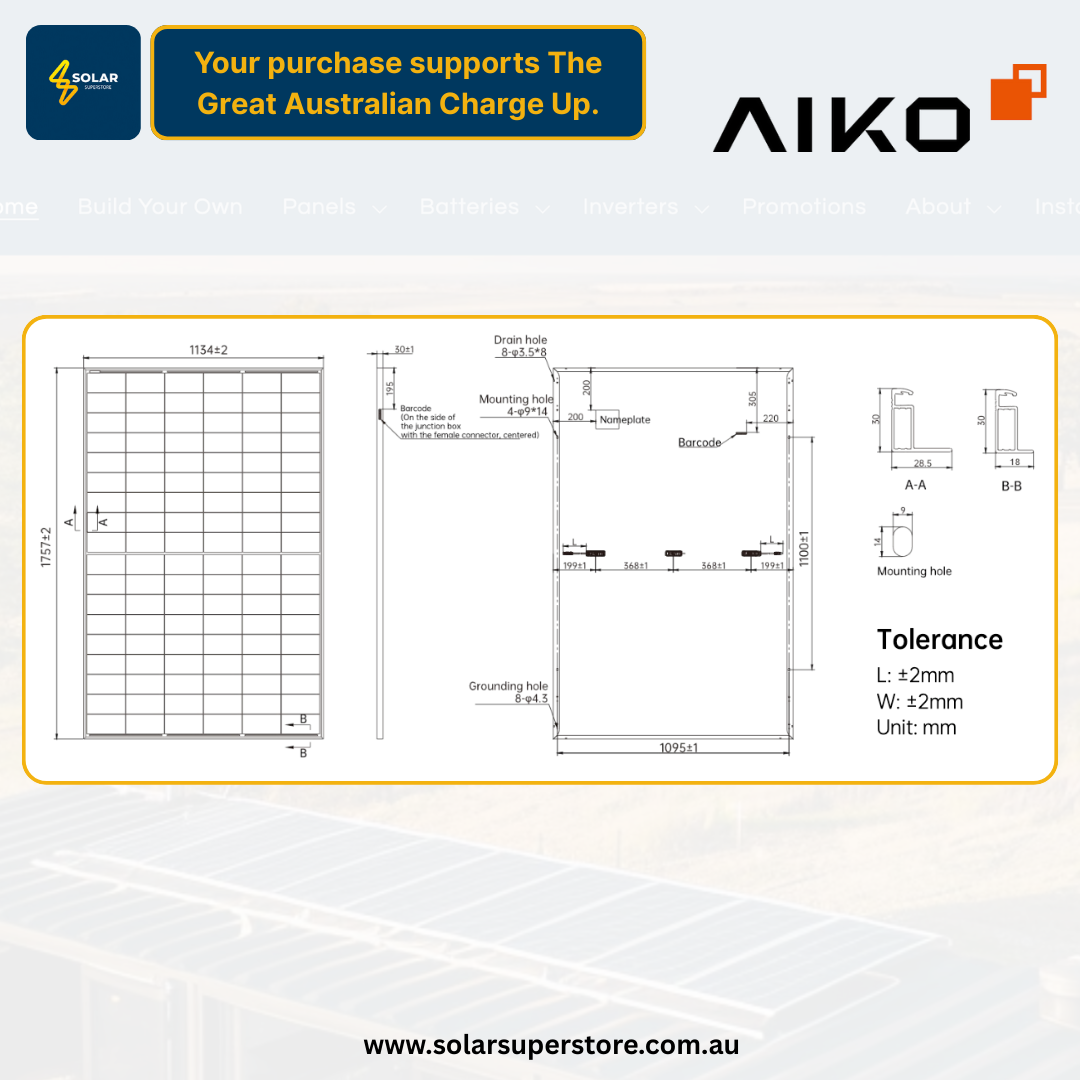

Dimensions (L×W×H)	1757 × 1134 × 30 mm
Weight	20.6 kg ±3%
Glass type and thickness	3.2 mm tempered glass
Frame Material	Black Anodized aluminum (IEC)
J-Box rating	IP68 3 bypass diodes
Cable specifications	MC 4mm² (IEC) ±1200mm

Temperature Coefficients

Parameter	Value
Power (Pmax) coefficient	-0.26 %/°C
Voltage (Voc) coefficient	-0.22 %/°C
Current (Isc) coefficient	+0.05 %/°C

Ratings & Certifications

Parameter	Value
Operating Temperature Range	-40°C ~ +85°C
Wind Load Rating	5400 Pa
Snow Load Rating	2400 Pa
Fire Performance	IEC Class C
Protection Class	Class II

Compatibility and Installation

Compatible With	Notes
String Inverters	Compatible with most modern string inverters; confirm inverter's MPPT voltage and current range meets panel specifications (Vmp: 34.80V Imp: 13.66A)
Microinverters	Excellent choice for panel-level optimization; ensure microinverter is rated for the 475W max power output.
Hybrid Inverters	Fully compatible with battery-ready systems due to high power and reliability.
Battery Systems	Seamlessly integrates with all major residential battery storage solutions when paired with a compatible inverter.

What's Included / Not Included

Included	Not Included (Required)
✓ Solar Panel Unit (475W)	Inverter/Controller (must be purchased separately)

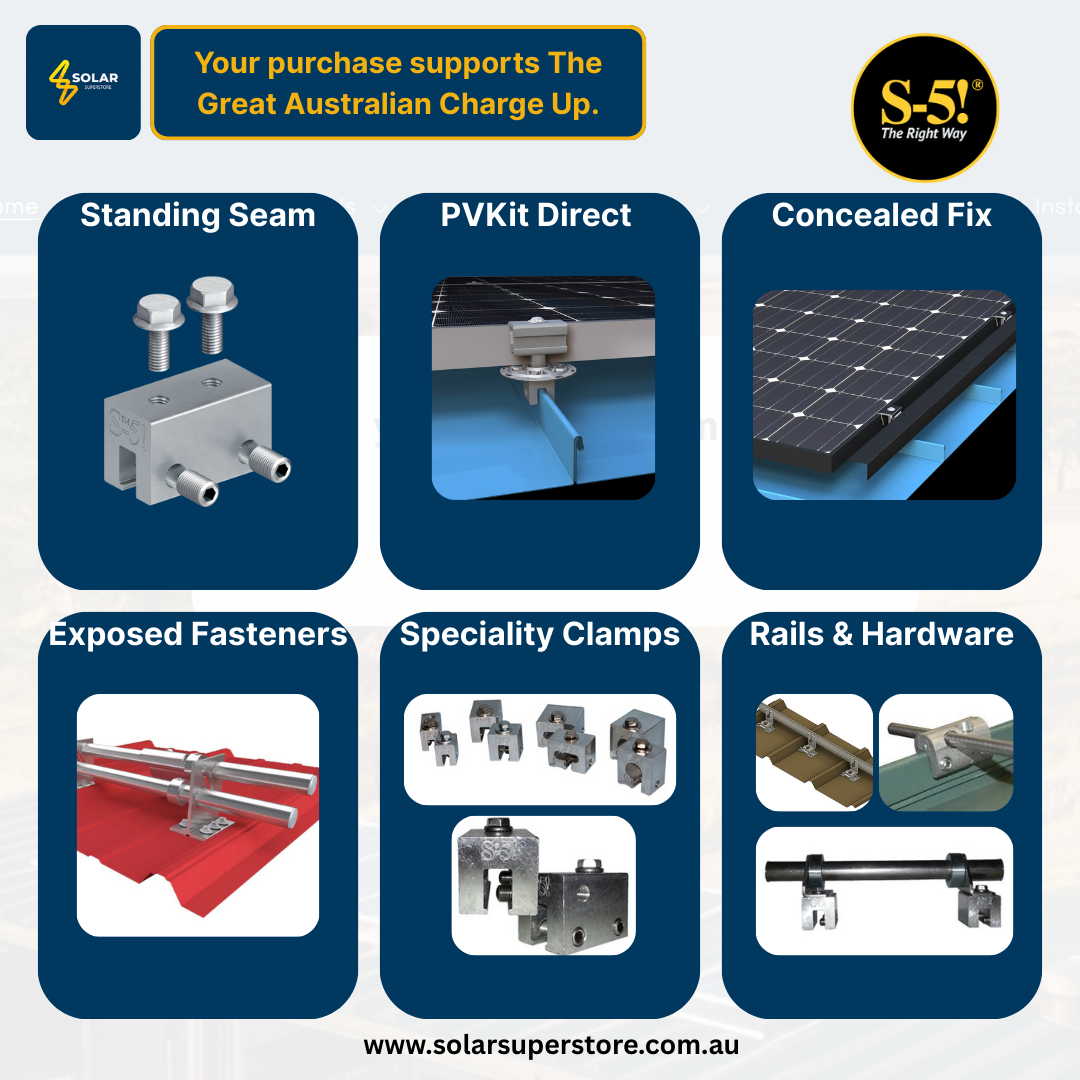

✓ Pre-wired Cables & Connectors (Stäubli)	Mounting Hardware (rails clamps fixings)
✓ J-Box with 3 bypass diodes	DC/AC Cabling and Isolators
✓ Installation Manual & Warranty Card	Professional Electrician Labor & Grid Approvals

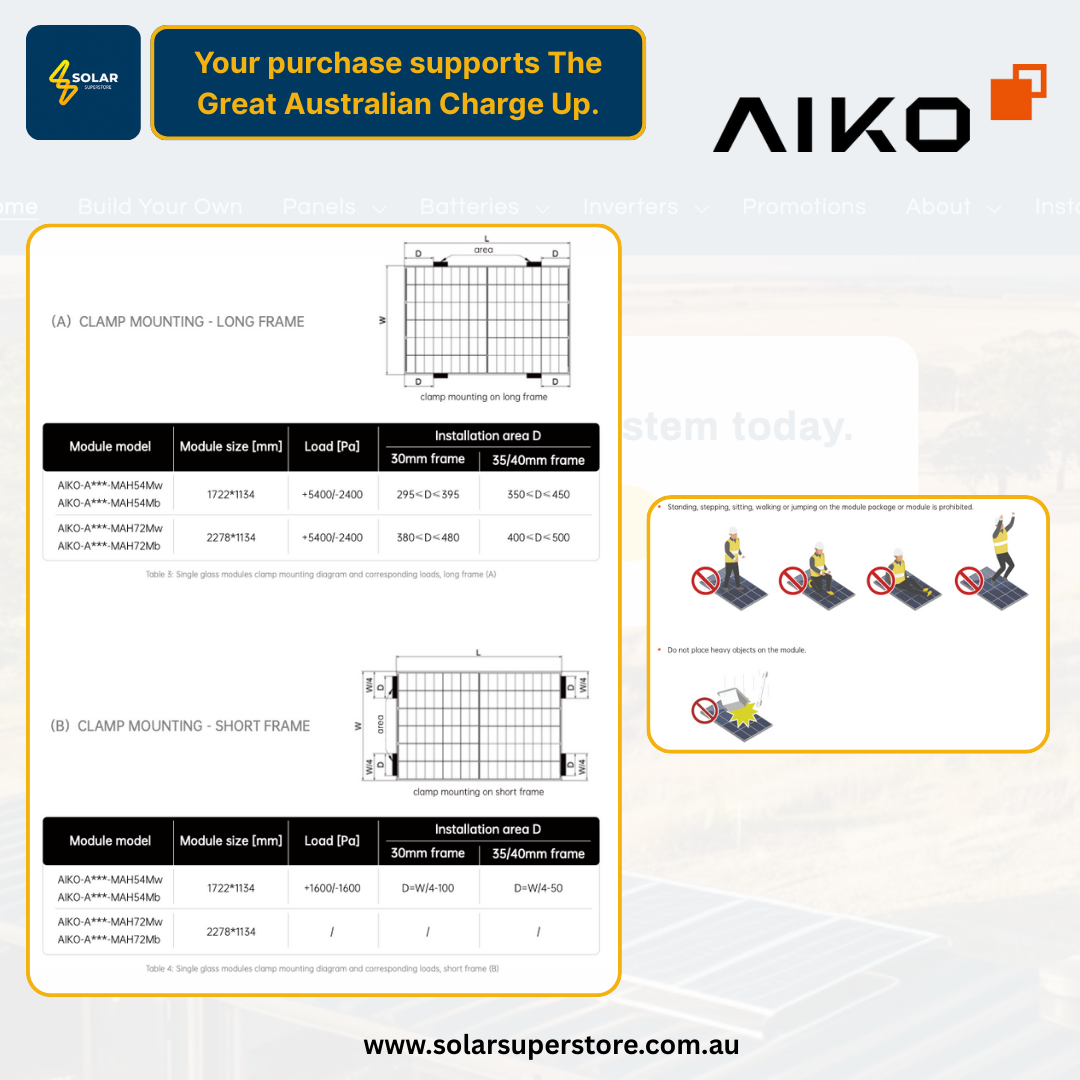

Installation Prerequisites

Requirement	Details
Minimum Clearance	The distance between the module frame and roof surface must be greater than 10 cm to guarantee the roof fire rating and ensure proper ventilation.
Mounting	Must be securely fastened at a minimum of 4 points on the frame. The mounting structure must be certified to withstand local wind/snow loads.
Roof Condition	Must pass structural evaluation by construction experts for rooftop systems.
Tilt Angle	Installation angle shall not be less than 10 degrees. Consult a local solar installation company for the optimal angle for maximal annual irradiance.

Warranty and Certification

Coverage Type	Standard	What's Covered
Product (Defects)	25 Years	Free from significant impact on basic power generation functionality due to material or manufacturing defects.
Performance	30 Years	Guaranteed power output calculated based on the linear degradation schedule.
1st Year Degradation	Max 1.0%	Power output is warranted to be no less than 99.0% of the nameplate power.
Annual Degradation (Yr 2-30)	Max 0.35%	Subsequent annual power decline.
End Warranty Output (Yr 30)	Min 88.85%	Minimum guaranteed power output after 30 years.

Performance Guarantee by Year

Year	Standard Warranty % (Min. Output)
1	99.0%
5	97.6%
10	95.85%
15	94.1%
20	92.35%
25	90.6%
30	88.85%

Environmental & Safety Ratings

Rating	Standard	Meaning
CEC Approved	Clean Energy Council	The product is eligible for the Australian SRES rebate.
Hail Resistance	Hail Test	Withstands 40mm hail at a speed of 27.5m/s.
Fire Rating	IEC Class C	Fire resistance certification for the PV module assembly.
Protection Class	Class II	Designed with Safety Class II for electrical insulation.
