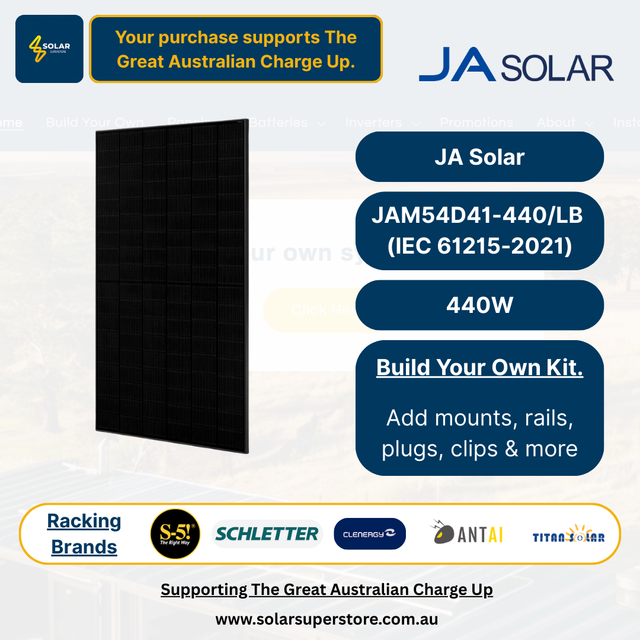

JA Solar Home Package: 440W [JAM54D41-440/LB] Panels (All Black N-Type)

$615.00

Taxes incluses Frais de livraison calculés lors du paiement.

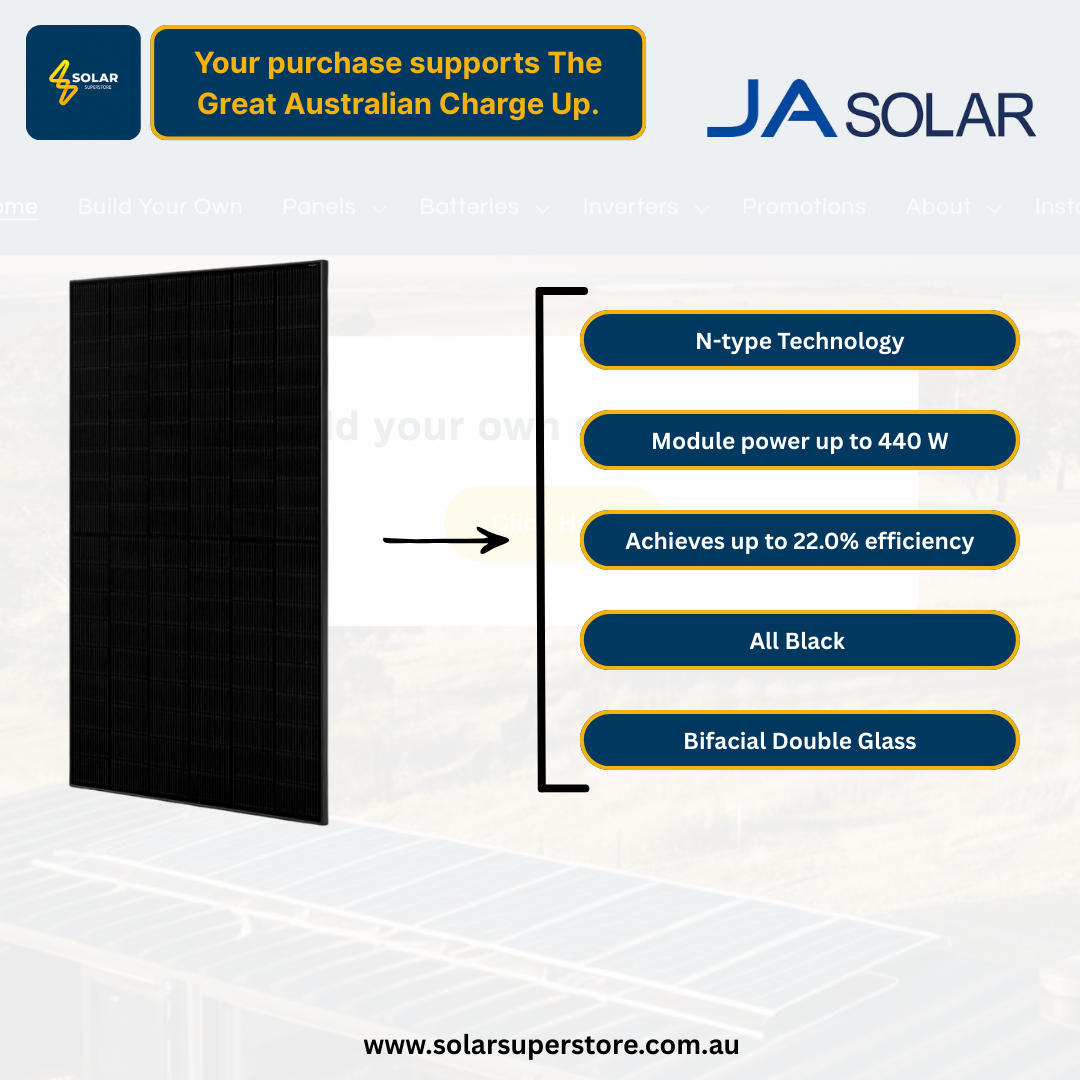

The JA Solar DEEP BLUE 4.0 Pro JAM54D41-440/LB is a cutting-edge N-type Bifacial Double Glass Mono Module rated at 440W featuring a high 22.0% module efficiency. With n-type technology that ensures very low LID and a superior temperature coefficient this module is engineered for higher power generation especially in challenging conditions. Backed by an extended 25-year product warranty and a 30-year linear power output warranty for Australian rooftop systems this panel secures your long-term energy investment and provides maximum reliability.

Key Benefits of the 475W NEOSTAR

Benefit	What It Means for You
Performance Warranty	Guarantees a minimum power output of 87.4% after three decades securing your investment and ensuring reliable long-term savings.
Degradation Rate	Maximum 1% loss in the first year followed by only 0.4% annual degradation meaning your system produces more power for longer.
Module Efficiency	Achieves 22.0% efficiency maximising energy harvested from your available roof space for higher overall power generation.
Technology	Built with n-type technology to ensure very low Light-Induced Degradation (LID) so your system produces more power for longer.
Mechanical Strength	Constructed with a durable double glass designand certified to withstand a maximum static load of 3600 Pa on the front ensuring superior durability against external elements.
Temperature Performance	A Pmax temperature coefficient of -0.300%/°Cmeans less power loss on hot days significantly boosting annual energy production.

Invest in the future of solar with the JA Solar DEEP BLUE 4.0 Pro series. This 440W module is engineered for maximum energy independence and provides significant long-term savings for both residential and commercial projects with its superior energy yield. By choosing this module you gain the peace of mind that comes with an industry-leading 25-year product and 30-year linear performance warranty for your Australian rooftop system.

The panel leverages advanced n-type cell technology combined with a bifacial double-glass design. The n-type characteristic results in very low LID (Light-Induced Degradation) compared to traditional cells meaning the panel retains more of its initial power over time. Additionally the temperature coefficient for Pmax is only -0.300%/°C ensuring less power loss on hot days and significantly boosting annual energy production in high-temperature environments.

The DEEP BLUE 4.0 Pro 440W is ideal for installations requiring maximum output from limited roof space due to its 22.0% efficiency. The module is a framed bifacial double-glass type and is generally suitable for use in highly corrosive areas provided appropriate protection measures are taken for components. It can be installed in seaside locations between 50m and 500m from the sea but requires prior approval from JA Solar and corrosion protection. The maximum operating temperature is 85°C and it must not be installed in locations where the monthly average temperature exceeds 45°C with monthly average humidity above 85%.

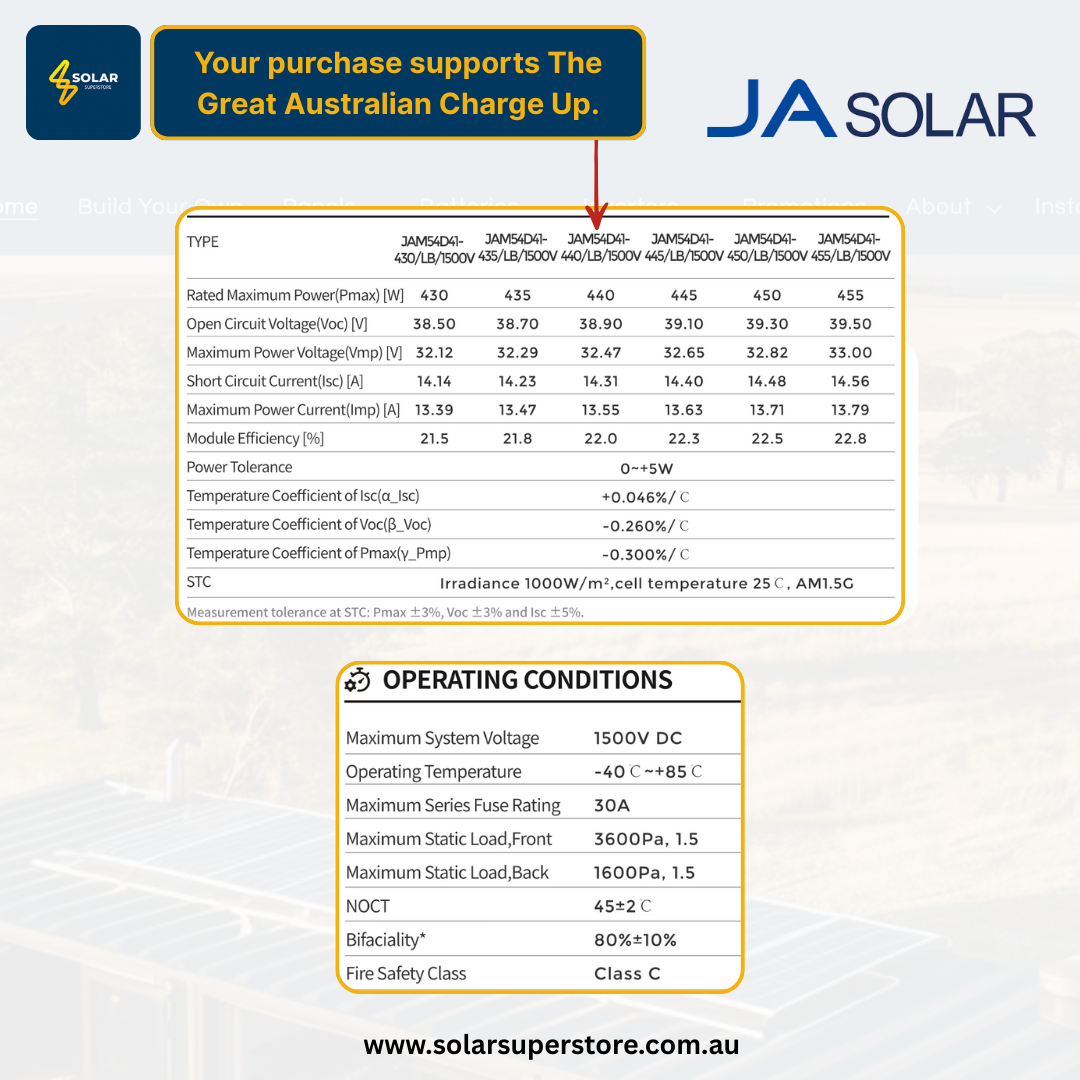

Technical Specifications Electrical Characteristics (STC)

Maximum Power (Pmax)	440 W
Module Efficiency	22.0 %
Operating Voltage (Vmp)	32.47 V
Operating Current (Imp)	13.55 A
Open Circuit Voltage (Voc)	38.90 V
Short Circuit Current (Isc)	14.31 A
Power Tolerance	0 ~ +5 %
Max. System Voltage	DC 1500V
Max. Series Fuse Rating	30 A

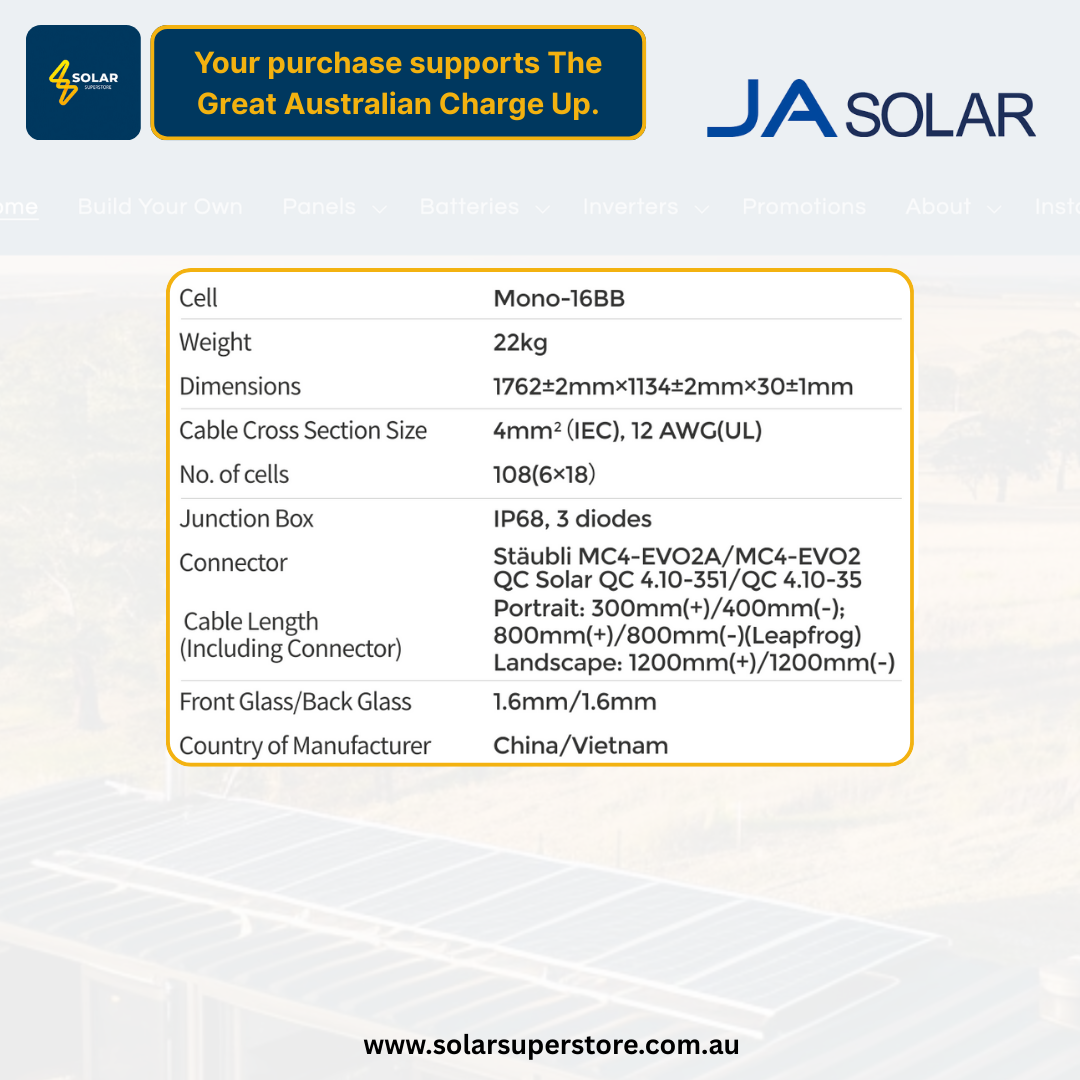

Mechanical Specifications

Parameter	Value
Cell Type	Mono-16BB
Cell Configuration	108 (6×18)

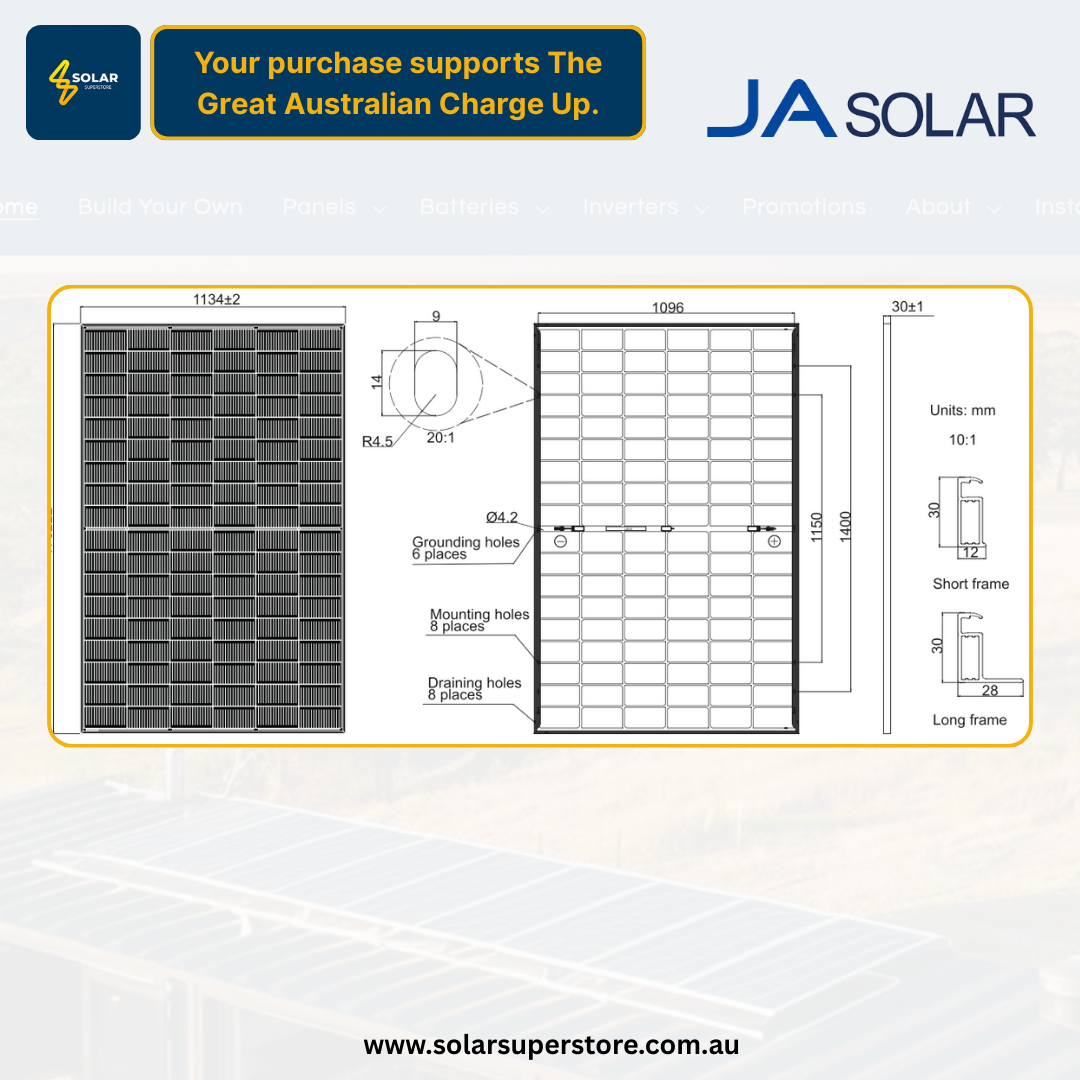

Dimensions (L×W×H)	1762 × 1134 × 30 mm
Weight	22 kg
Glass type and thickness	1.6mm / 1.6mm
Frame Material	Black Anodized aluminum (IEC)
J-Box rating	IP68 3 bypass diodes
Cable specifications	MC 4mm² (IEC) ±1200mm

Temperature Coefficients

Parameter	Value
Power (Pmax) coefficient	-0.3 %/°C
Voltage (Voc) coefficient	-0.26 %/°C
Current (Isc) coefficient	+0.046 %/°C

Ratings & Certifications

Parameter	Value
Operating Temperature Range	-40°C ~ +85°C
Wind Load Rating	3600 Pa
Snow Load Rating	3600 Pa
Fire Performance	IEC Class C
Protection Class	Class II

Compatibility and Installation

Compatible With	Notes
String Inverters	Compatible with most modern 1500V DC-rated string inverters; confirm inverter's MPPT voltage and current range meets panel specifications (Vmp: 32.47V Imp: 13.55A).
Microinverters	Suitable for systems requiring panel-level optimisation; ensure the device is rated for the module's 440W max power output.
Hybrid Inverters	Fully compatible with battery-ready systems due to high power and reliability.
Battery Systems	Seamlessly integrates with all major residential battery storage solutions when paired with a compatible inverter.

What's Included / Not Included

Included	Not Included (Required)
✓ Solar Panel Unit (440W)	Inverter/Controller (must be purchased separately)

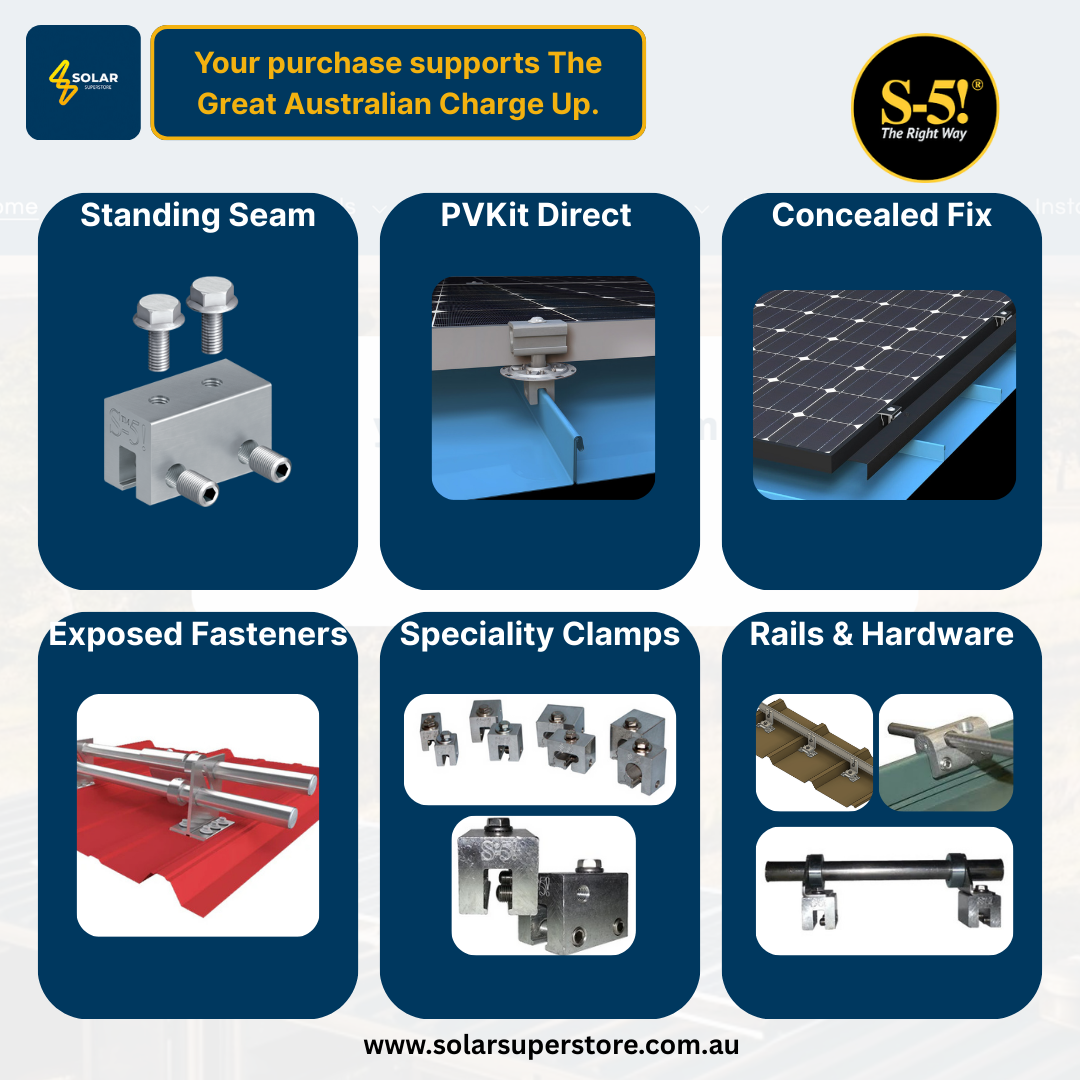

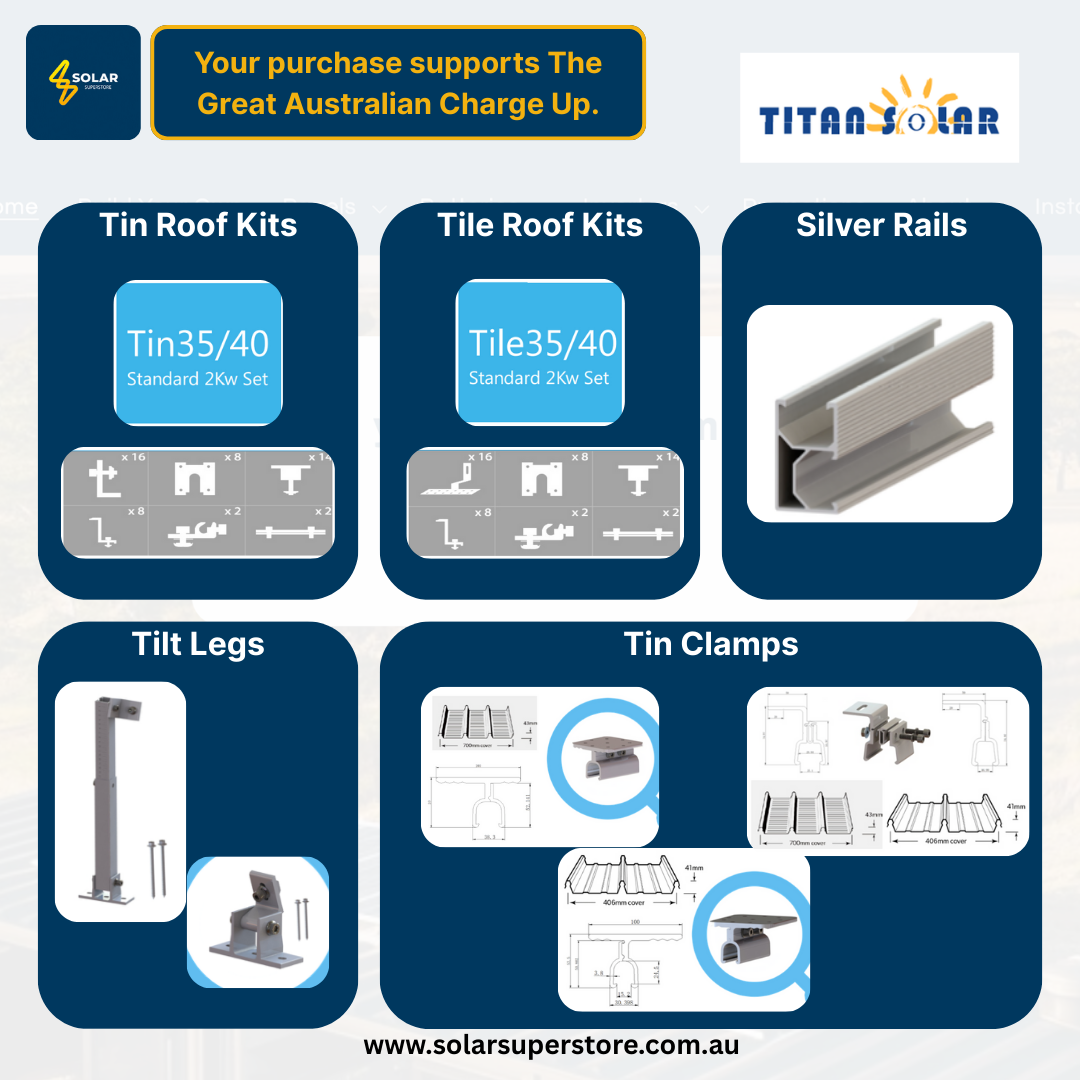

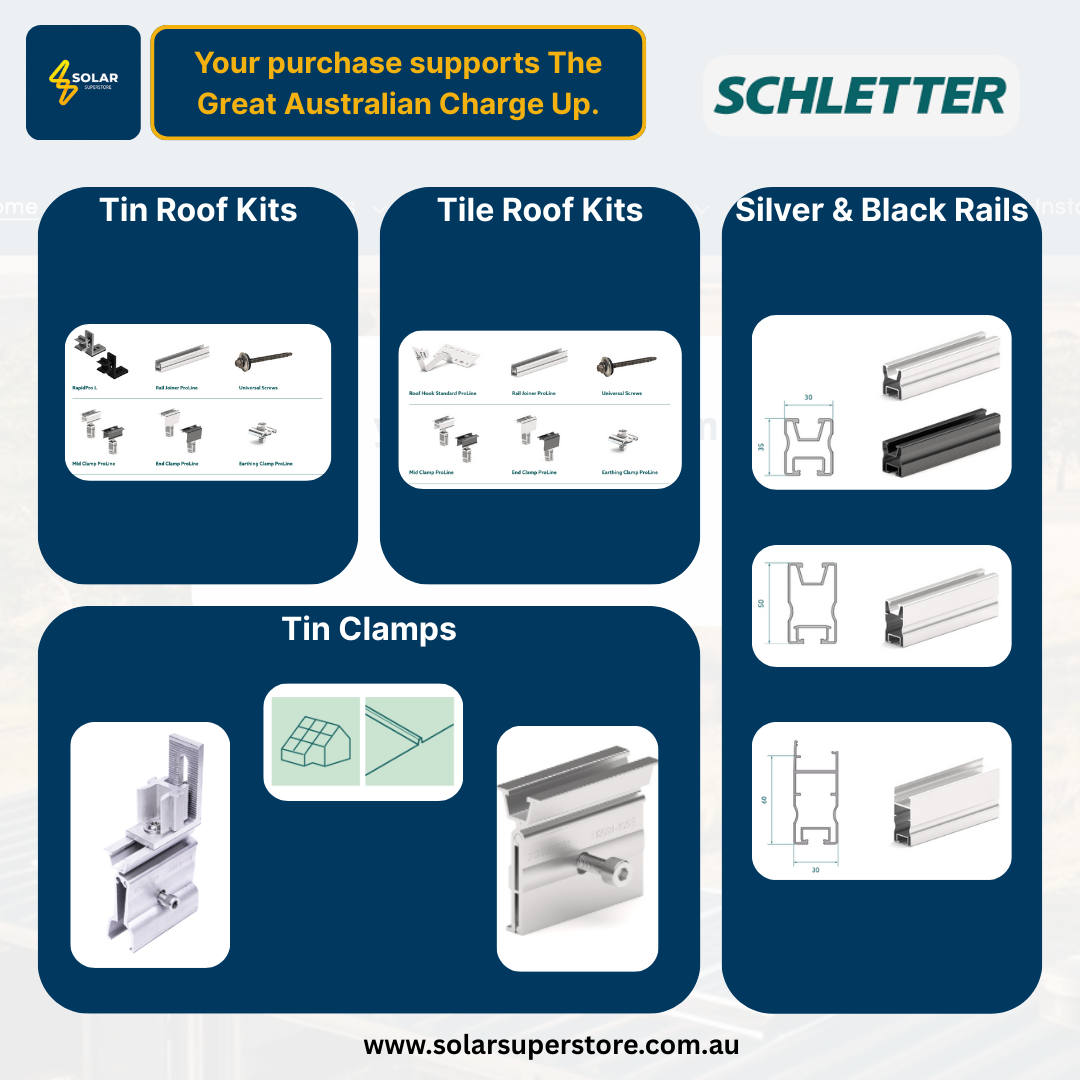

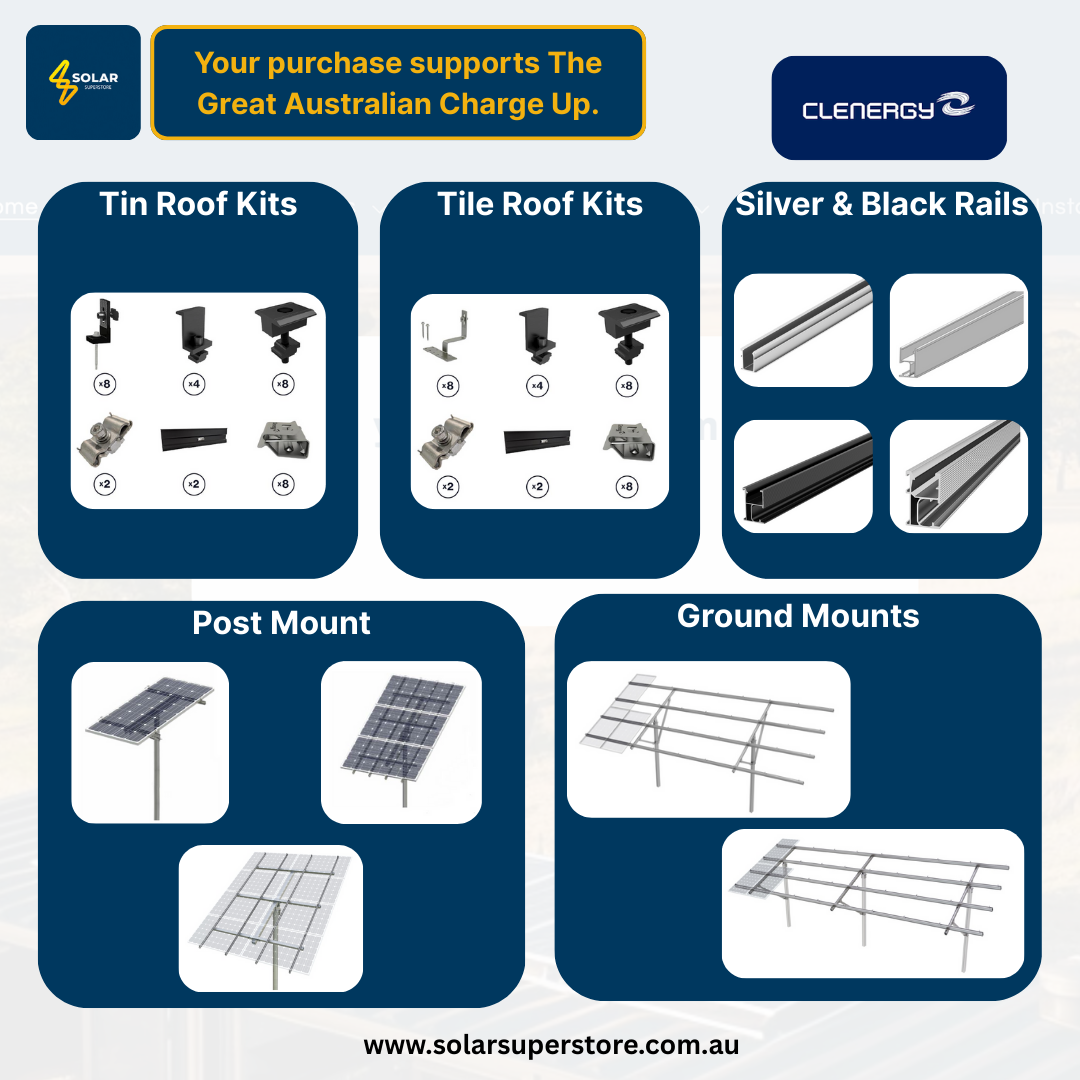

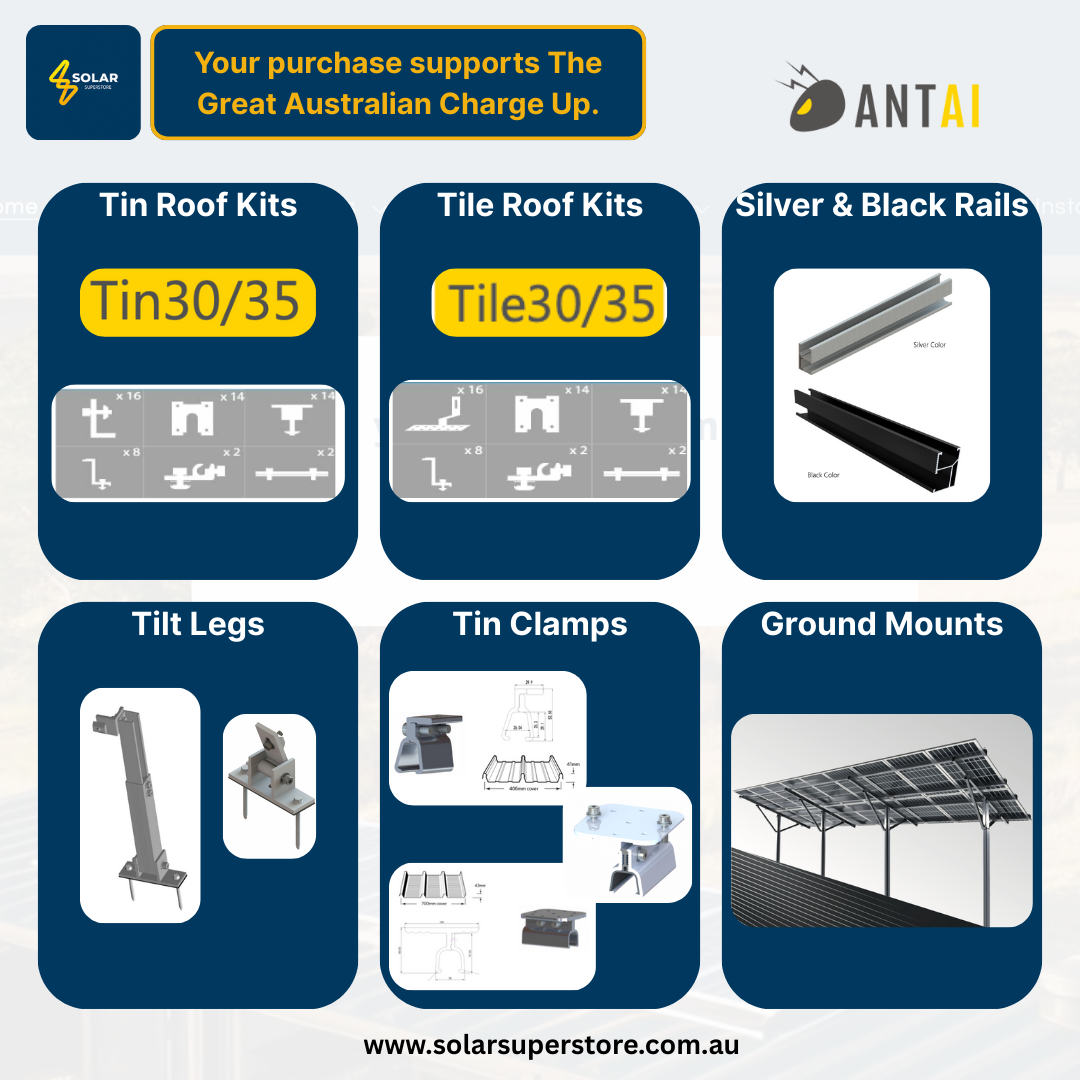

✓ Pre-wired Cables & Connectors (Stäubli)	Mounting Hardware (rails clamps fixings)
✓ J-Box with 3 bypass diodes	DC/AC Cabling and Isolators
✓ Installation Manual & Warranty Card	Professional Electrician Labor & Grid Approvals

Installation Prerequisites

Requirement	Details
Minimum Clearance	The distance between the module frame and roof surface must be greater than 10 cm to guarantee the roof fire rating and ensure proper ventilation.

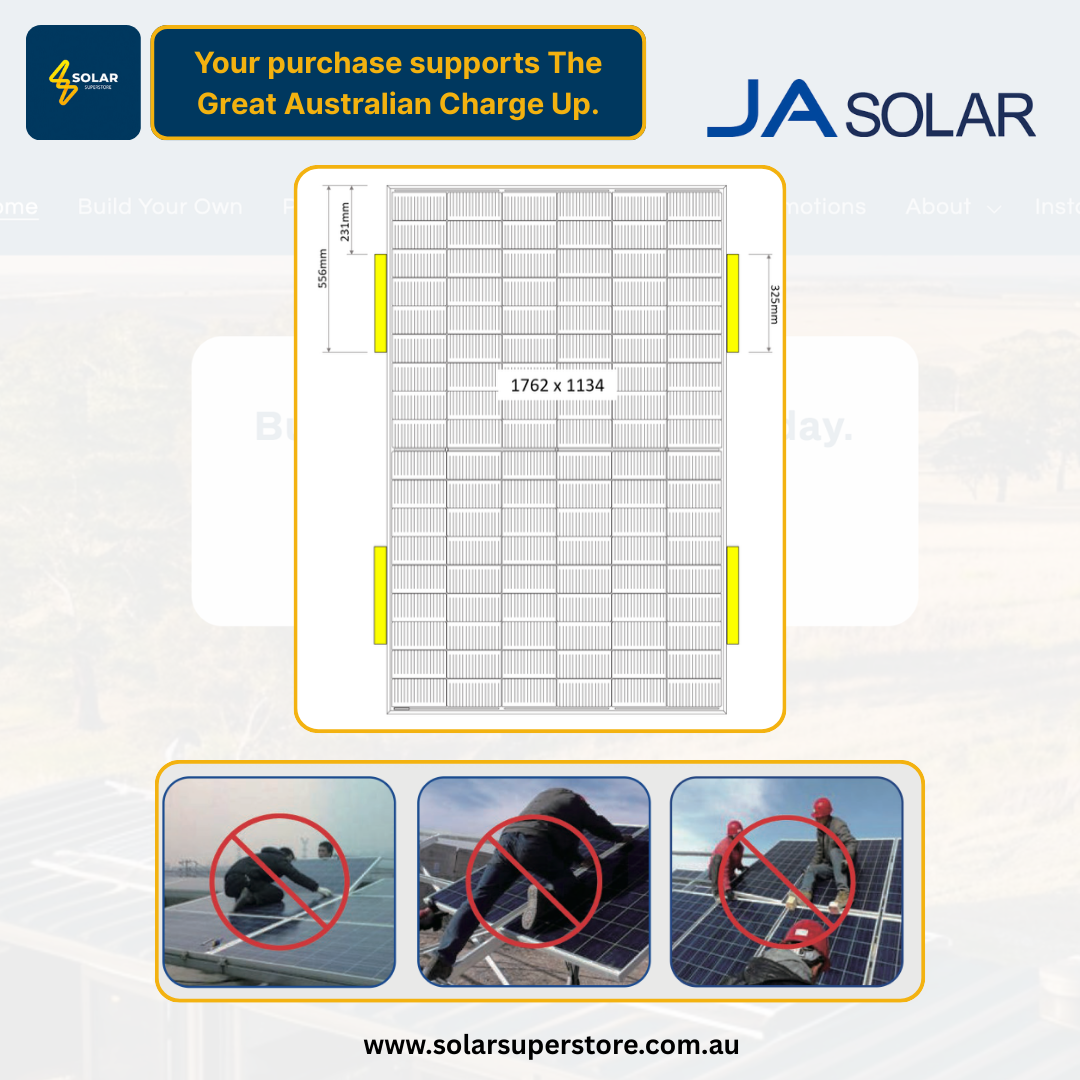

Mounting	Must be securely fastened at a minimum of 4 points on the frame. The mounting structure must be certified to withstand local wind/snow loads.
Roof Condition	Must pass structural evaluation by construction experts for rooftop systems.
Tilt Angle	Consult a local solar installation company for the optimal angle for maximal annual irradiance.

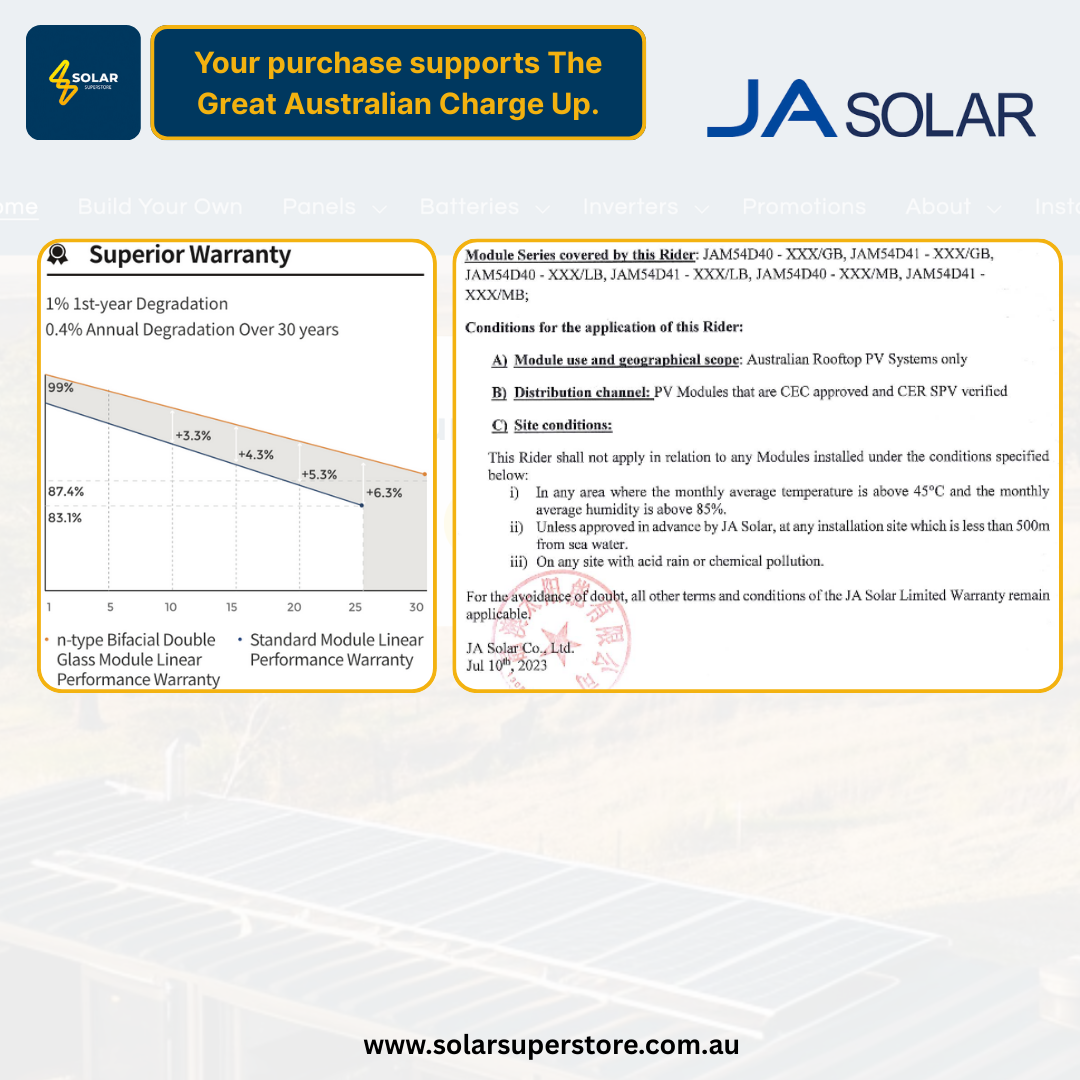

Warranty and Certification

Coverage Type	Standard	What's Covered
Product (Defects)	25 Years	Free from defects in design material workmanship or manufacturing which affect module function applicable only to Australian Rooftop PV Systems.
Performance	30 Years	Guaranteed power output calculated based on the linear degradation schedule.
1st Year Degradation	Max 1.0%	Power output is warranted to be no less than 99.0% of the nameplate power.
Annual Degradation (Yr 2-30)	Max 0.4%	Subsequent annual power decline.
End Warranty Output (Yr 30)	Min 87.4%	Minimum guaranteed power output after 30 years.

Performance Guarantee by Year

Year	Standard Warranty % (Min. Output)
1	99.0%
5	97.6%
10	95.4%
15	93.4%
20	91.4%
25	89.4%
30	87.4%

Environmental & Safety Ratings

Rating	Standard	Meaning
CEC Approved	Clean Energy Council	The product is eligible for the Australian SRES rebate.
Fire Rating	IEC Class C	Fire resistance certification for the PV module assembly.
Protection Class	Class II	Designed with Safety Class II for electrical insulation.
